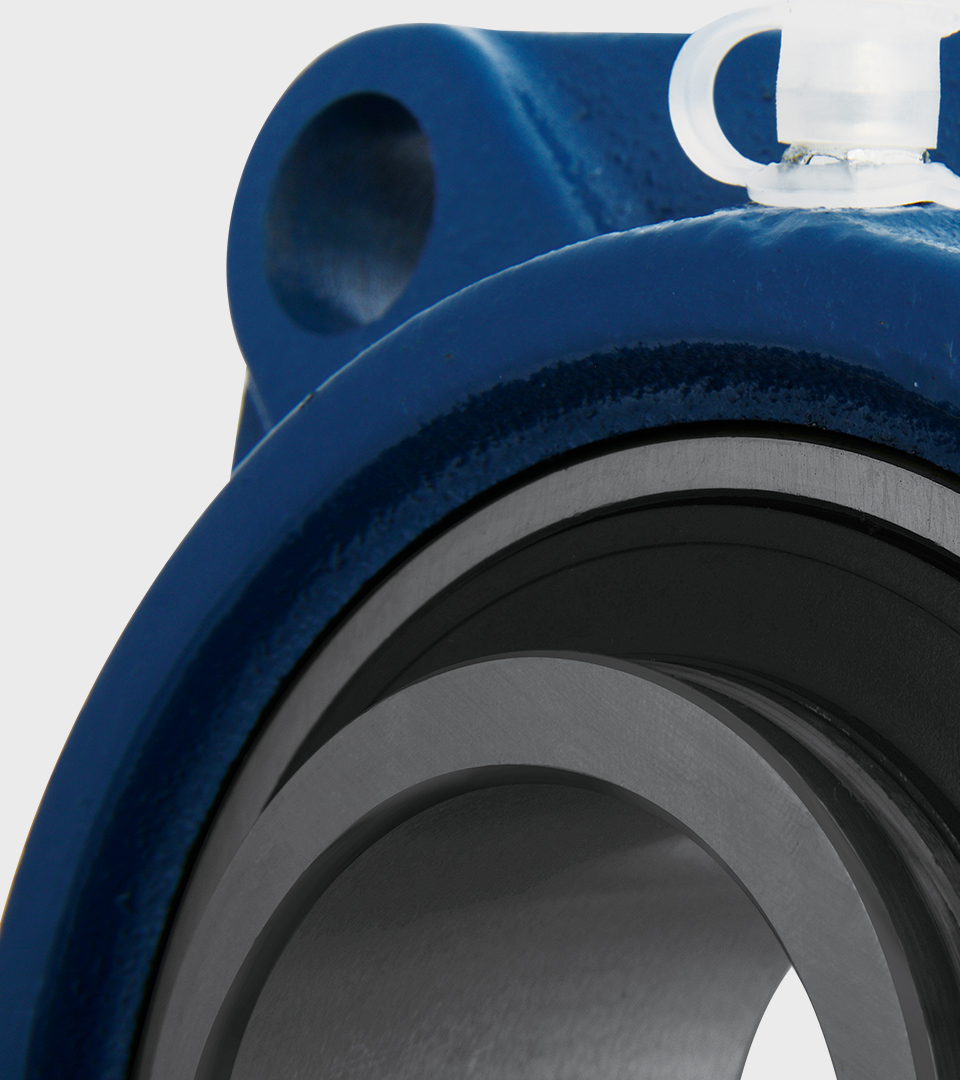

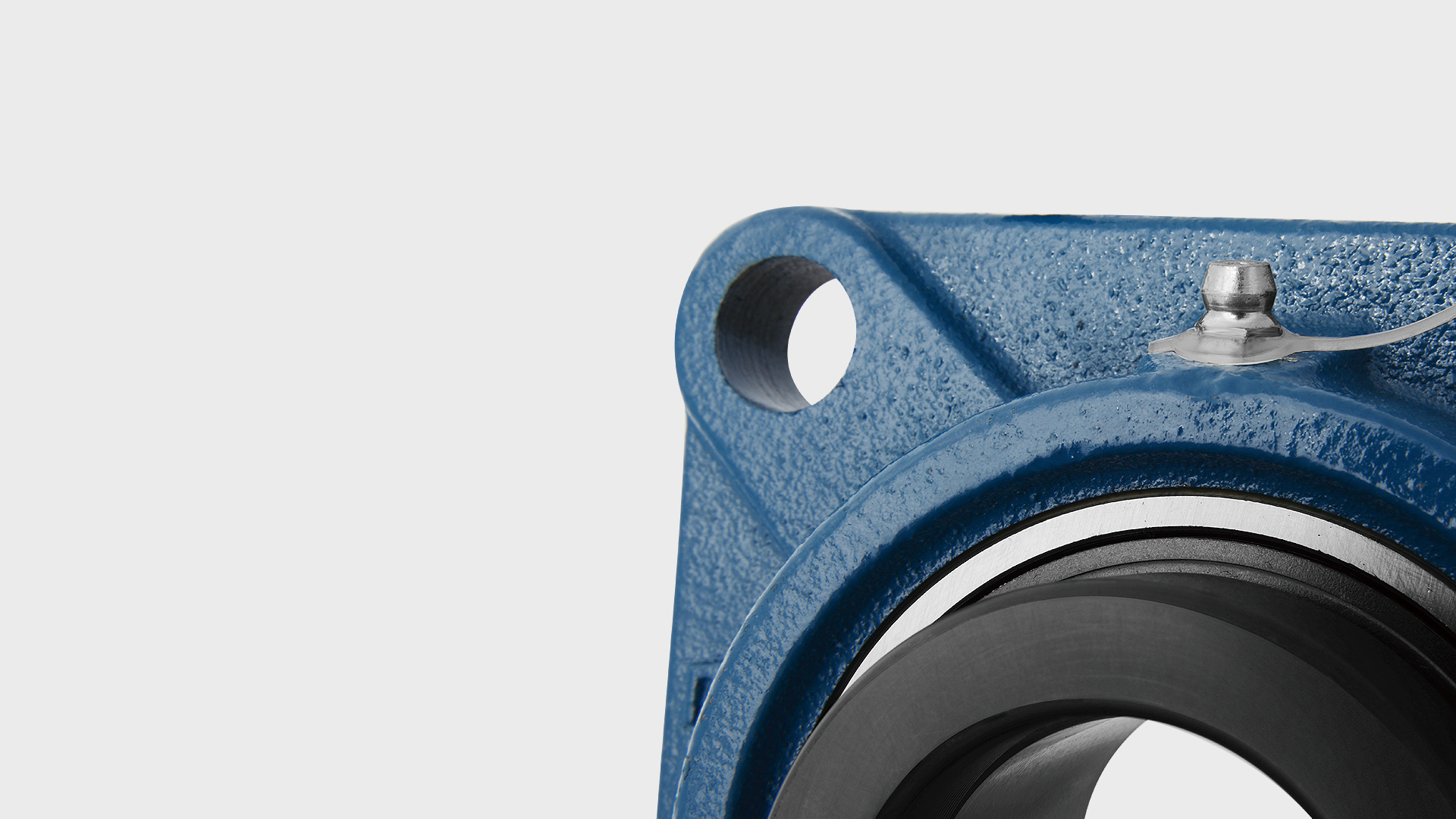

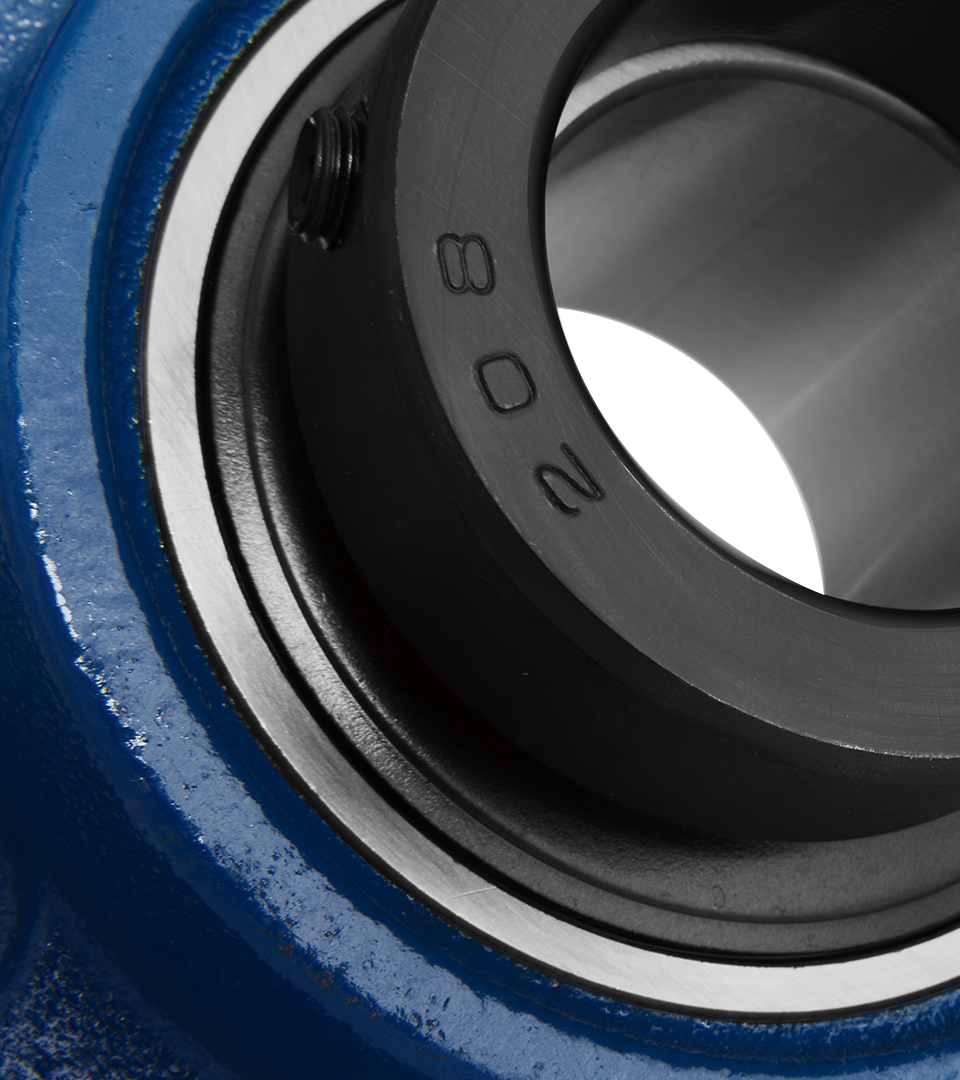

精湛的細節

精湛的細節

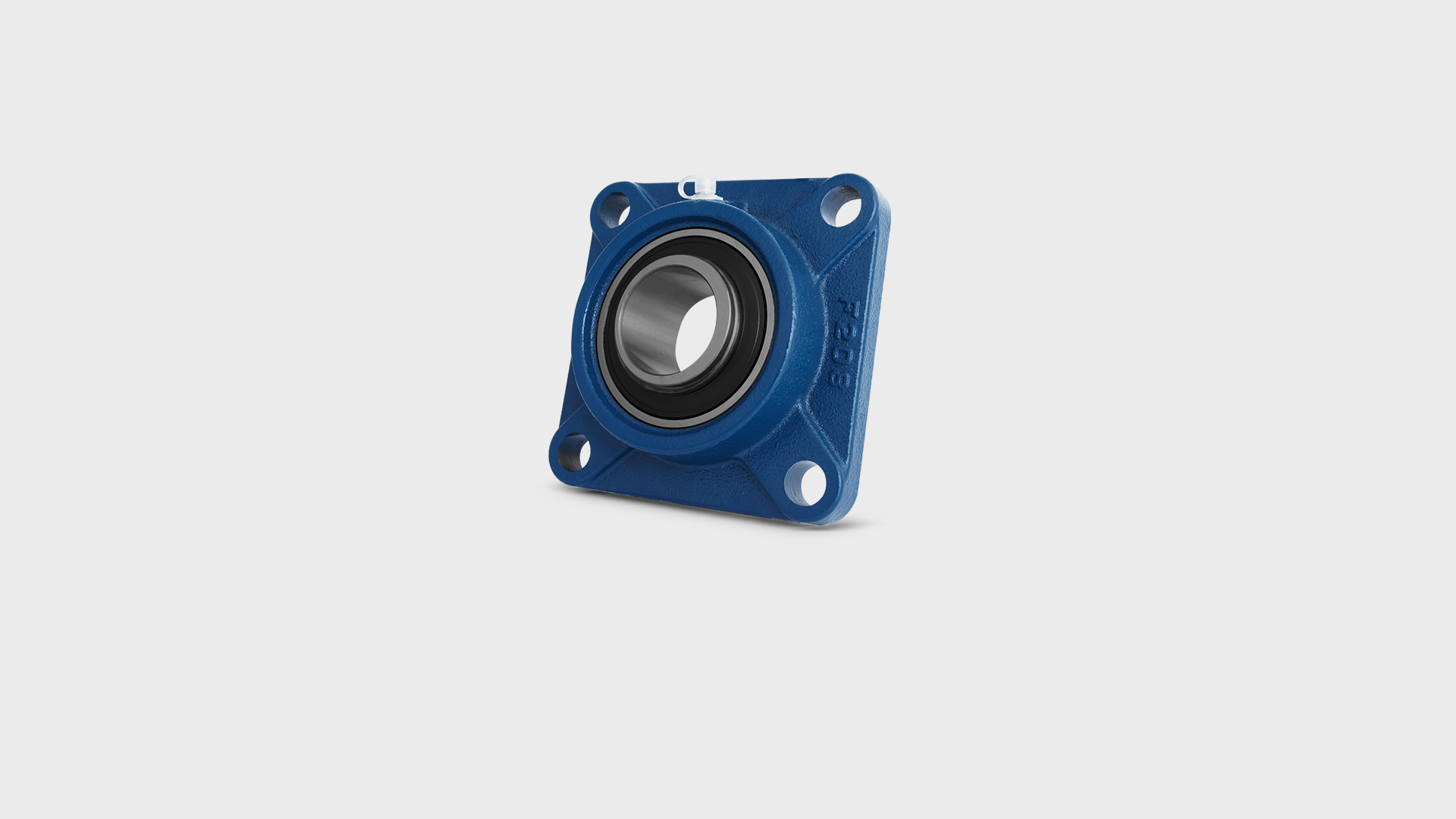

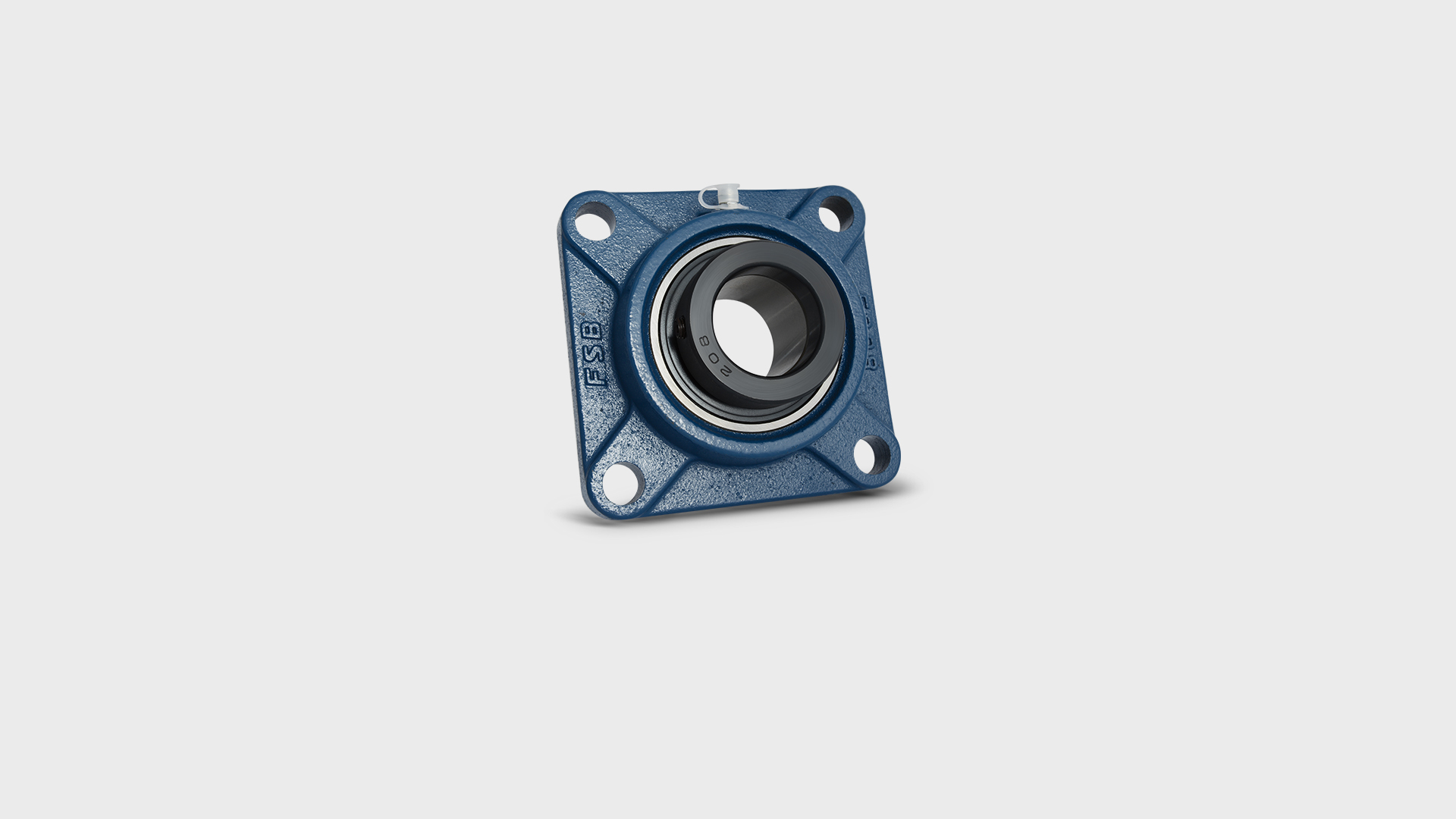

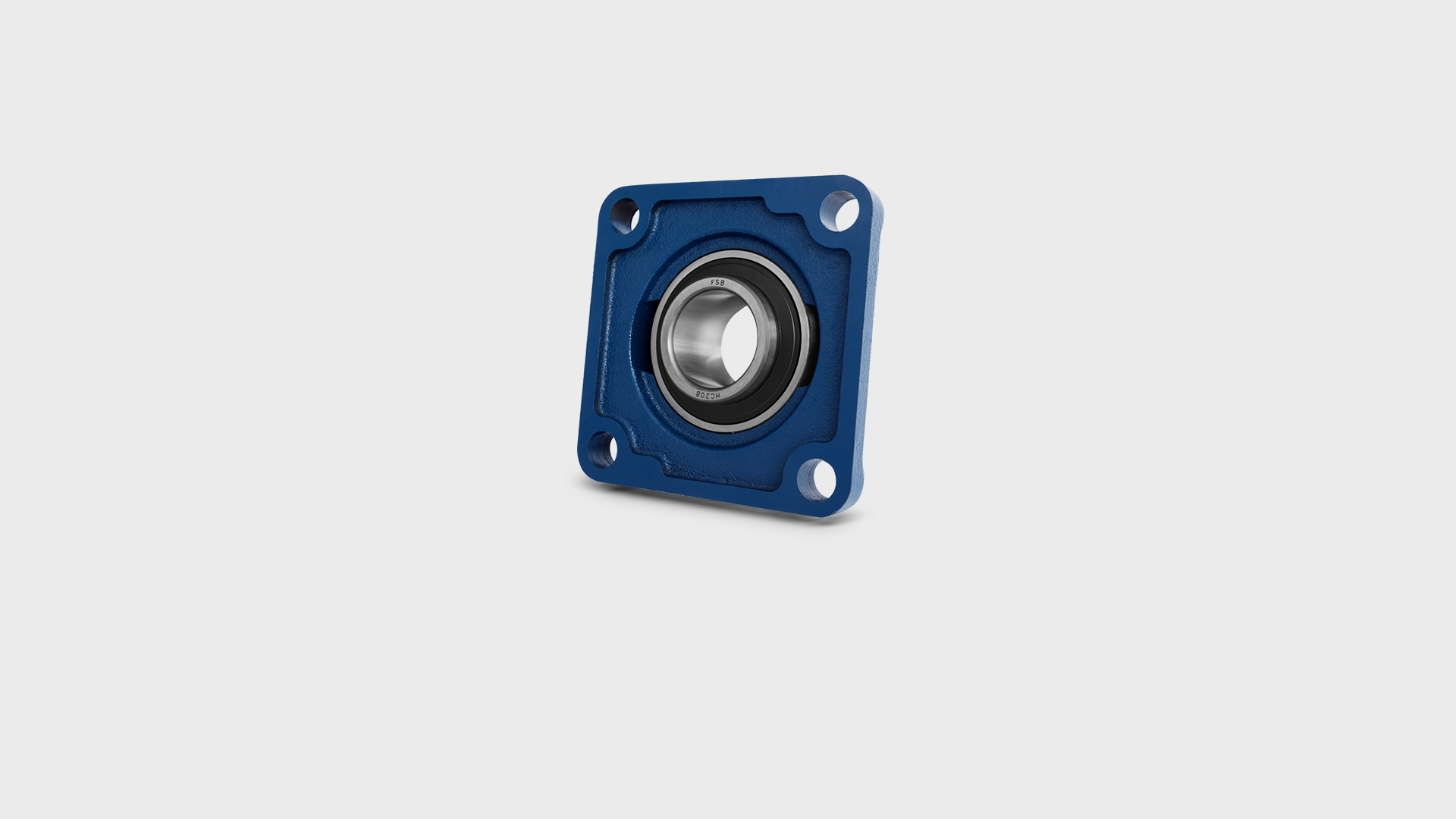

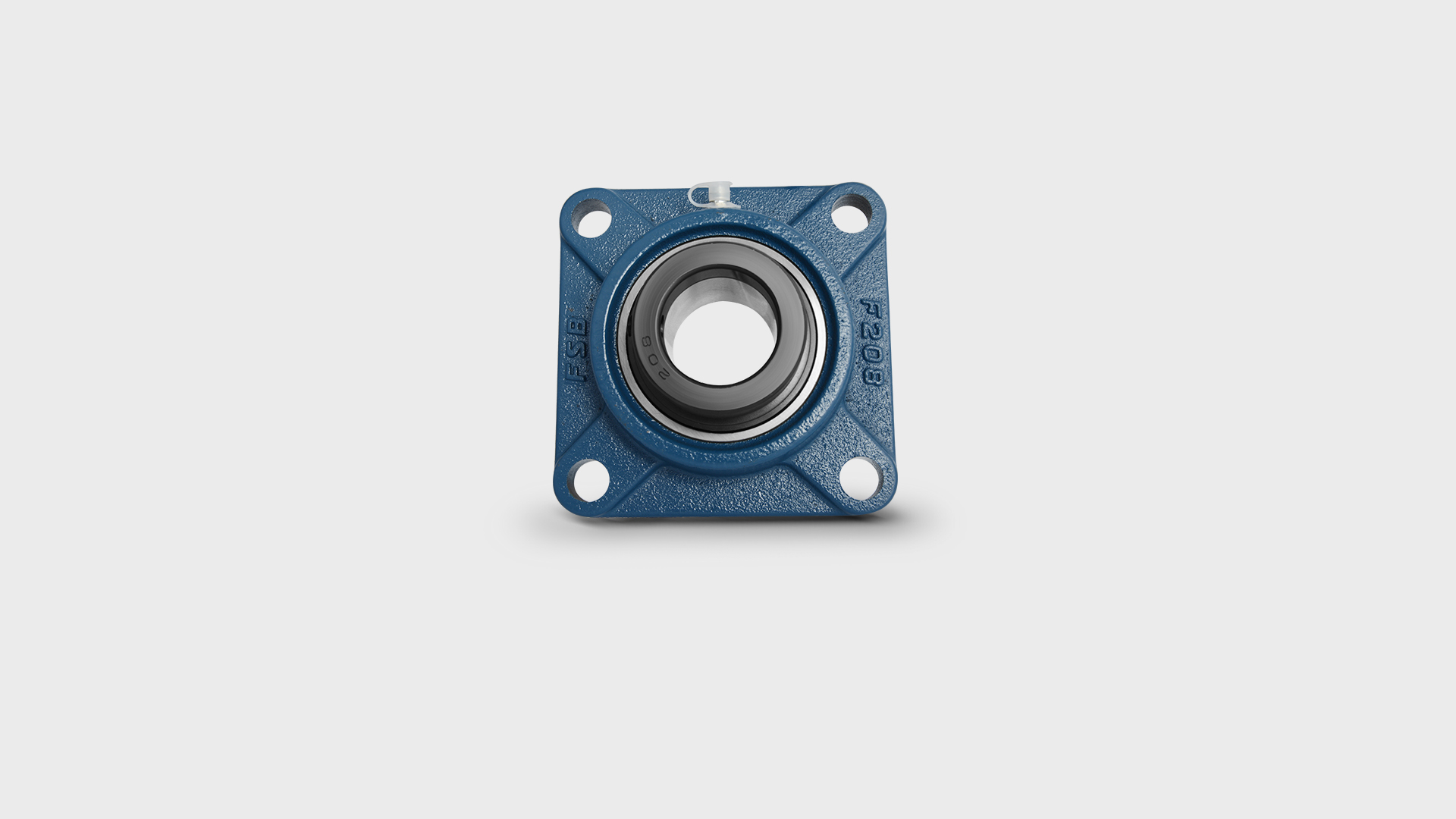

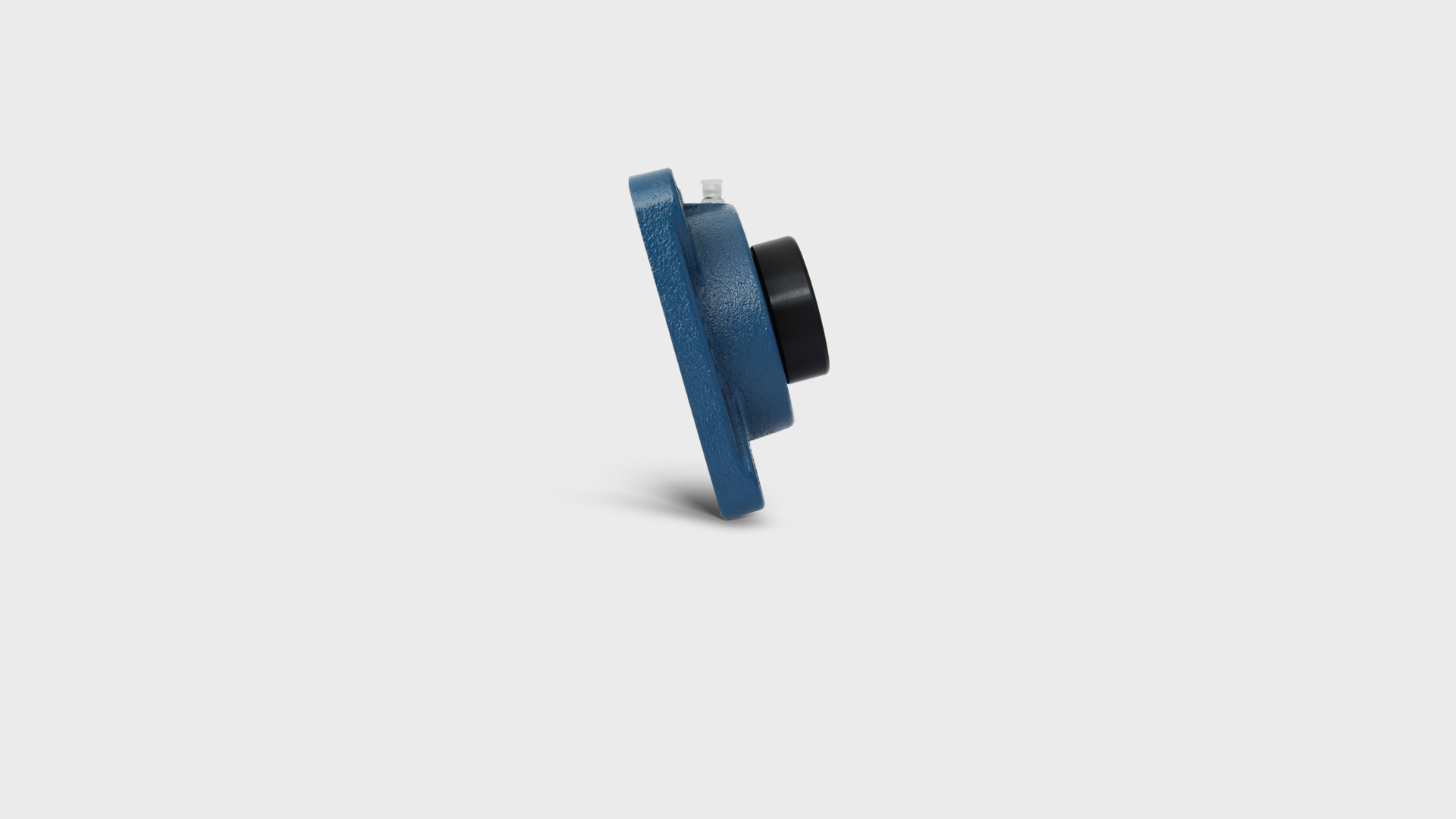

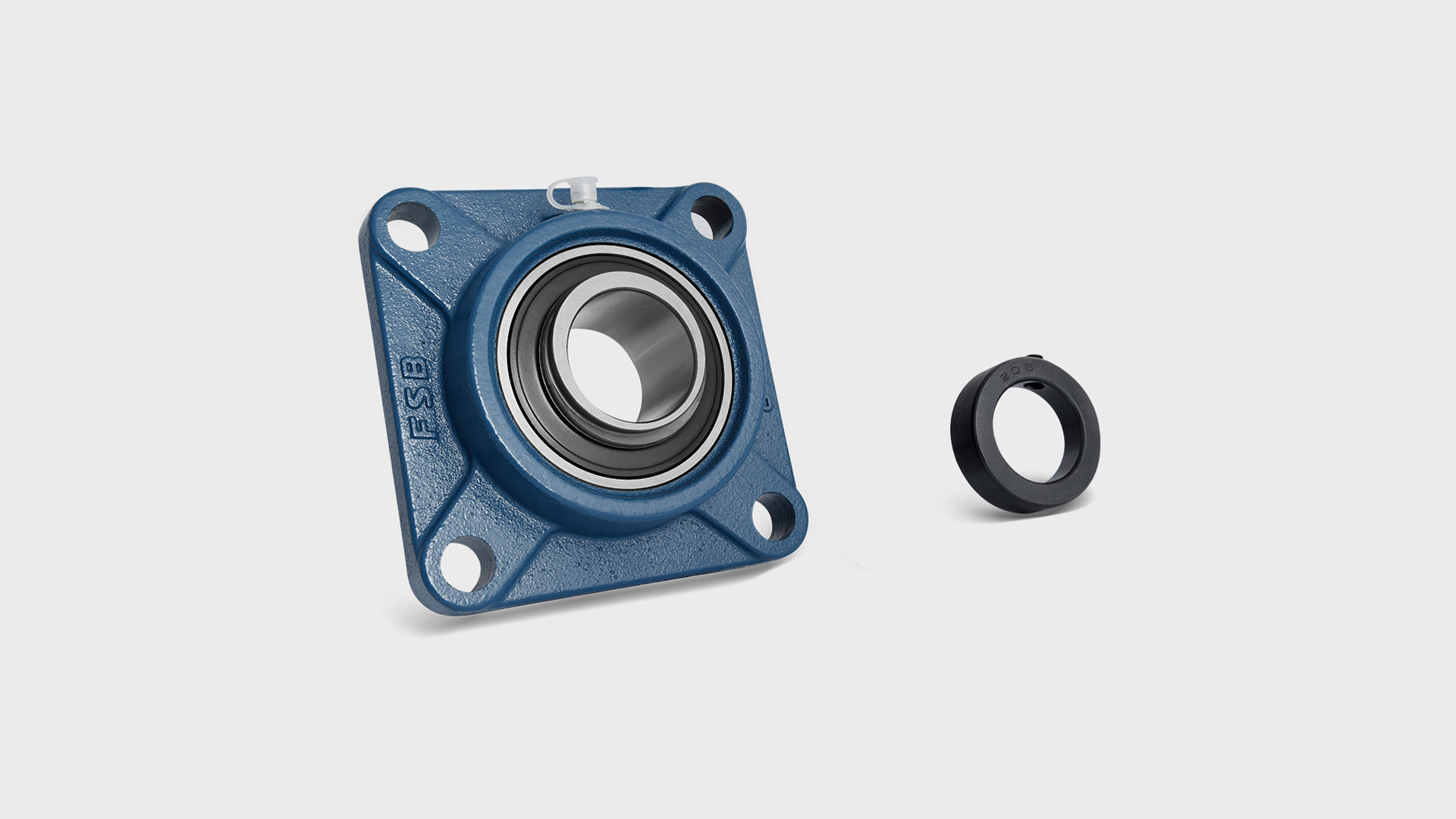

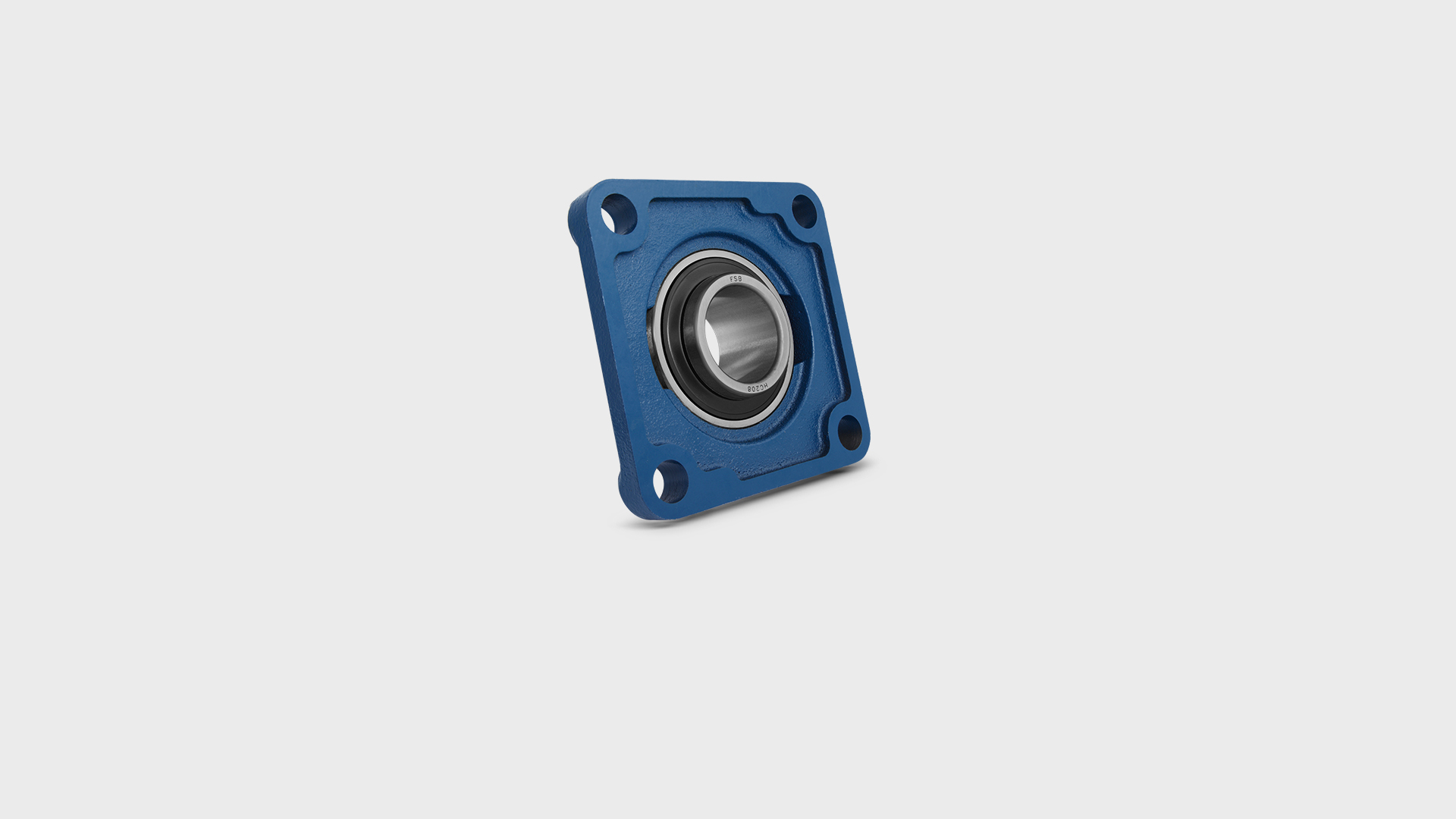

HCF200

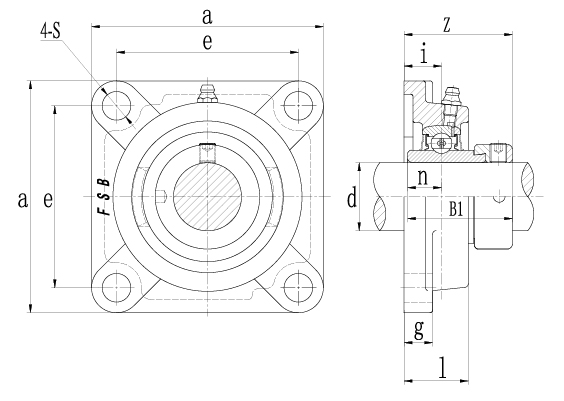

帶座軸承型號 ? ?	軸徑		尺 ? ? ? ? ? ? ?寸									螺栓		軸承芯型號	軸承座型號	基本額定載荷			? ?疲勞極限載荷	? ? ? 極限轉速(SRS) ? ? ?軸的配合公差(h6)	? 重量
	mm	in	mm / in									mm	in	—	—	動載荷		靜載荷	? ?疲勞極限載荷	? ? ? 極限轉速(SRS) ? ? ?軸的配合公差(h6)	m
	d		a	e	i	g	l	S	Z	B1	n					Cr		Cor	Cur	r / min	≈Kg
	d		a	e	i	g	l	S	Z	B1	n					KN				r / min	≈Kg
HCF201	12	—	76	54	15	12	25.5	11.5	38.4	37.3	13.9	M10	—	HC201	F203	9.56		4.75	0.20	9500	0.5
HCF201-8	—	1/2	3	2-1/8	19/32	15/32	1	29/64	1.5118	1.4685	0.5472	—	3/8	HC201-8	F203	9.56		4.75	0.20	9500	0.5
HCF202	15	—	76	54	15	12	25.5	11.5	38.4	37.3	13.9	M10	—	HC202	F203	9.56		4.75	0.20	9500	0.5
HCF202-10	—	5/8	3	2-1/8	19/32	15/32	1	29/64	1.5118	1.4685	0.5472	—	3/8	HC202-10	F203	9.56		4.75	0.20	9500	0.5
HCF203	17	—	76	54	15	12	25.5	11.5	38.4	37.3	13.9	M10	—	HC203	F203	9.56		4.75	0.20	9500	0.5
HCF203-11	—	11/16	3	2-1/8	19/32	15/32	1	29/64	1.5118	1.4685	0.5472	—	3/8	HC203-11	F203	9.56		4.75	0.20	9500	0.5
HCF204	20	—	86	64	15	12	25.5	12	41.6	43.7	17.1	M10	—	HC204	F204	12.700		6.55	0.28	8500	0.6
HCF204-12	—	3/4	3-3/8	2-33/64	19/32	15/32	1	15/32	1.6378	1.7205	0.6732	—	3/8	HC204-12	F204	12.700		6.55	0.28	8500	0.6
HCF205	25	—	95	70	16	14	27	12	42.9	44.3	17.4	M10	—	HC205	F205	14.0		7.80	0.34	7000	0.8
HCF205-14	—	7/8	3-3/4	2-3/4	5/8	9/16	1-1/16	15/32	1.6890	1.7441	0.6850	—	3/8	HC205-14
HCF205-15	—	15/16												HC205-15
HCF205-16	—	1												HC205-16
HCF206	30	—	108	83	18	14	31	12	48.15	48.4	18.25	M10	—	HC206	F206	19.50		11.2	0.48	6300	1.2
HCF206-18	—	1-1/8	4-1/4	3-17/64	45/64	9/16	1-7/32	15/32	1.8957	1.9055	0.7185	—	3/8	HC206-18
HCF206-19	—	1-3/16												HC206-19
HCF206-20	—	1-1/4												HC206-20
HCF207	35	—	117	92	19	16	34	14	51.3	51.1	18.8	M12	—	HC207	F207	25.50		15.3	0.66	5300	1.6
HCF207-20	—	1-1/4	4-19/32	3-5/8	3/4	5/8	1-11/32	35/64	2.0197	2.0118	0.7402	—	7/16	HC207-20
HCF207-21	—	1-5/16												HC207-21
HCF207-22	—	1-3/8												HC207-22
HCF207-23	—	1-7/16												HC207-23
HCF208	40	—	130	102	21	16	36	16	55.9	56.3	21.4	M14	—	HC208	F208	30.70		19.0	0.87	4800	1.9
HCF208-24	—	1-1/2	5-1/8	4-1/64	53/64	5/8	1-13/32	5/8	2.2008	2.2165	0.8425	—	1/2	HC208-24
HCF208-25	—	1-9/16	5-1/8	4-1/64	53/64	5/8	1-13/32	5/8	2.2008	2.2165	0.8425	—	1/2	HC208-25
HCF209	45	—	137	105	22	18	38	16	56.9	56.3	21.4	M14	—	HC209	F209	33.20		21.6	0.920	4300	2.3
HCF209-26	—	1-5/8	5-13/32	4-9/64	55/64	23/32	1-1/2	5/8	2.2402	2.2165	0.8425	—	1/2	HC209-26
HCF209-27	—	1-11/16												HC209-27
HCF209-28	—	1-3/4												HC209-28
HCF210	50	—	143	111	22	18	40	16	60.1	62.7	24.6	M14	—	HC210	F210	35.10		23.2	0.98	4000	2.6
HCF210-30	—	1-7/8	5-5/8	4-3/8	55/64	23/32	1-9/16	5/8	2.3661	2.4685	0.9685	—	1/2	HC210-30
HCF210-31		1-15/16												HC210-31
HCF210-32		2												HC210-32
HCF211	55	—	162	130	25	20	43	19	68.65	71.4	27.75	M16	—	HC211	F211	43.60		29.0	1.25	3600	3.8
HCF211-32	—	2	6-3/8	5-1/8	63/64	25/32	1-11/16	3/4	2.7028	2.8110	1.0925	—	5/8	HC211-32
HCF211-34	—	2-1/8												HC211-34
HCF211-35	—	2-3/16												HC211-35
HCF212	60	—	175	143	29	20	48	19	75.85	77.8	30.95	M16	—	HC212	F212	52.70		36.0	1.53	3400	4.8
HCF212-36	—	2-1/4	6-7/8	5-5/8	1-9/64	25/32	1-7/8	3/4	2.9862	3.0630	1.2185	—	5/8	HC212-36
HCF212-38	—	2-3/8												HC212-38
HCF212-39	—	2-7/16												HC212-39
HCF213	65	—	187	149	30	20	50	19	81.3	85.6	34.3	M16	—	HC213	F213	57.20		40.0	1.70	3000	6.0
HCF213-40	—	2-1/2	7-3/8	5-55/64	1-3/16	25/32	1-31/32	3/4	3.2008	3.3701	1.3504	—	5/8	HC213-40	F213	57.20		40.0	1.70	3000	6.0
HCF214	70	—	193	152	31.8	24.8	54.8	19	83	85.3	34.1	M16	—	HC214	F214	62.40		45.0	1.86	2800	6.4
HCF214-42	—	2-5/8	7-19/32	5-63/64	11/4	31/32	2-5/32	3/4	3.2677	3.3583	1.3425	—	5/8	HC214-42
HCF214-43	—	2-11/16												HC214-43
HCF214-44	—	2-3/4												HC214-44
HCF215	75	—	200	159	35	25	57	19	89.6	92.1	37.5	M16	—	HC215	F215	66.30		49.0	2.04	2600	7.2
HCF215-47	—	2-15/16	7-7/8	6-17/64	1-3/8	63/64	2-1/4	3/4	3.5276	3.6260	1.4764	—	5/8	HC215-47
HCF215-48	—	3	7-7/8	6-17/64	1-3/8	63/64	2-1/4	3/4	3.5276	3.6260	1.4764	—	5/8	HC215-48
