福建福山軸承有限公司

精湛的細節

精湛的細節

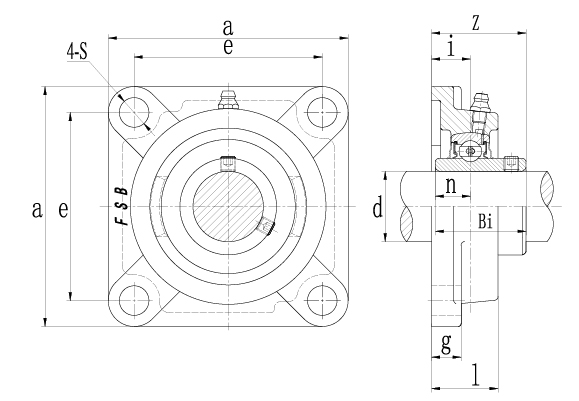

UCF200

帶座軸承型號	軸徑		尺 ? ? ? ? ? ? ?寸									螺栓		軸承芯型號	軸承座型號	基本額定載荷		疲勞極限載荷	? 極限轉速(SRS) 軸的配合公差（h6）	重量
	軸徑		尺 ? ? ? ? ? ? ?寸									螺栓		軸承芯型號	軸承座型號	動載荷	靜載荷	疲勞極限載荷		重量
	mm	?in	mm / in									mm	in	—	—	Cr	Cor	?Cur		? m
	d		a	e	i	g	l	S	Z	Bi	n	mm	in	—	—	KN			? ? ? r / min	?≈Kg
UCF201	12	—	86	64	15	12	25.5	12	33.3	31.0	12.7	M10	—	UC201	F204	12.70	6.55	0.28	8500	0.6
UCF201-8	—	1/2	3-3/8	2-33/64	19/32	15/32	1	15/32	1.3110	1.2205	0.5000	—	3/8	UC201-8	F204	12.70	6.55	0.28	8500	0.6
UCF202	15	—	86	64	15	12	25.5	12	33.3	31.0	12.7	M10	—	UC202	F204	12.70	6.55	0.28	8500	0.6
UCF202-10	—	5/8	3-3/8	2-33/64	19/32	15/32	1	15/32	1.3110	1.2205	0.5000	—	3/8	UC202-10	F204	12.70	6.55	0.28	8500	0.6
UCF203	17	—	86	64	15	12	25.5	12	33.3	31.0	12.7	M10	—	UC203	F204	12.70	6.55	0.28	8500	0.6
UCF203-11	—	11/16	3-3/8	2-33/64	19/32	15/32	1	15/32	1.3110	1.2205	0.5000	—	3/8	UC203-11	F204	12.70	6.55	0.28	8500	0.6
UCF204	20	—	86	64	15	12	25.5	12	33.3	31.0	12.7	M10	—	UC204	F204	12.70	6.55	0.28	8500	0.6
UCF204-12	—	3/4	3-3/8	2-33/64	19/32	15/32	1	15/32	1.3110	1.2205	0.5000	—	3/8	UC204-12	F204	12.70	6.55	0.28	8500	0.6
UCF205	25	—	95	70	16	14	27	12	35.7	34	14.3	M10	—	UC205	F205	14.00	7.80	0.34	7000	0.8
UCF205-14	—	7/8	3-3/4	2-3/4	5/8	9/16	1-1/16	15/32	1.4055	1.3386	0.5630	—	3/8	UC205-14
UCF205-15	—	15/16												UC205-15
UCF205-16	—	1												UC205-16
UCF206	30	—	108	83	18	14	31	12	40.2	38.1	15.9	M10	—	UC206	F206	19.50	11.20	0.48	6300	1.1
UCF206-18	—	1-1/8	4-1/4	3-17/64	45/64	9/16	1-7/32	15/32	1.5827	1.5000	0.6260	—	3/8	UC206-18
UCF206-19	—	1-3/16												UC206-19
UCF206-20	—	1-1/4												UC206-20
UCF207	35	—	117	92	19	16	34	14	44.4	42.9	17.5	M12	—	UC207	F207	25.50	15.30	0.66	5300	1.5
UCF207-20	—	1-1/4	4-19/32	3-5/8	3/4	5/8	1-11/32	35/64	1.7480	1.6890	0.6890	—	7/16	UC207-20
UCF207-21	—	1-5/16												UC207-21
UCF207-22	—	1-3/8												UC207-22
UCF207-23	—	1-7/16												UC207-23
UCF208	40	—	130	102	21	16	36	16	51.2	49.2	19.0	M14	—	UC208	F208	30.70	19.00	0.80	4800	1.9
UCF208-24		1-1/2	5-1/8	4-1/64	53/64	5/8	1-13/32	5/8	2.0157	1.9370	0.7480	—	1/2	UC208-24
UCF208-25	—	1-9/16	5-1/8	4-1/64	53/64	5/8	1-13/32	5/8	2.0157	1.9370	0.7480	—	1/2	UC208-25
UCF209	45	—	137	105	22	18	38	16	52.2	49.2	19.0	M14	—	UC209	F209	33.20	21.60	0.92	4300	2.3
UCF209-26	—	1-5/8	5-13/32	4-9/64	55/64	23/32	1-1/2	5/8	2.0551	1.9370	0.7480	—	1/2	UC209-26
UCF209-27	—	1-11/16												UC209-27
UCF209-28	—	1-3/4												UC209-28
UCF210	50	—	143	111	22	18	40	16	54.6	51.6	19.0	M14	—	UC210	F210	35.1	23.2	0.98	4000	2.5
UCF210-30	—	1-7/8	5-5/8	4-3/8	55/64	23/32	1-9/16	5/8	2.1496	2.0315	0.7480	—	1/2	UC210-30
UCF210-31	—	1-15/16												UC210-31
UCF210-32	—	2												UC210-32
UCF211	55	—	162	130	25	20	43	19	58.4	55.6	22.2	M16	—	UC211	F211	43.60	29.00	1.25	3600	3.4
UCF211-32	—	2	6-3/8	5-1/8	63/64	25/32	1-11/16	3/4	2.2992	2.1890	0.8740	—	5/8	UC211-32
UCF211-34	—	2-1/8												UC211-34
UCF211-35	—	2-3/16												UC211-35
UCF212	60	—	175	143	29	20	48	19	68.7	65.1	25.4	M16	—	UC212	F212	52.70	36.00	1.53	3400	4.4
UCF212-36	—	2-1/4	6-7/8	5-5/8	1-9/64	25/32	1-7/8	3/4	2.7047	2.5630	1.0000	—	5/8	UC212-36
UCF212-38	—	2-3/8												UC212-38
UCF212-39	—	2-7/16												UC212-39
UCF213	65	—	187	149	30	20	50	19	69.7	65.1	25.4	M16	—	UC213	F213	57.20	40.0	1.70	3000	5.3
UCF213-40	—	2-1/2	7-3/8	5-55/64	1-3/16	25/32	1-31/32	3/4	2.7441	2.5630	1.0000	—	5/8	UC213-40	F213	57.20	40.0	1.70	3000	5.3
UCF214	70	—	193	152	31.8	24.8	54.8	19	76.2	74.6	30.2	M16	—	UC214	F214	62.40	45.00	1.86	2800	6.0
UCF214-44	—	2-3/4	7-19/32	5-63/64	1-1/4	31/32	2-5/32	3/4	3.0000	2.9370	1.1890	—	5/8	UC214-44	F214	62.40	45.00	1.86	2800	6.0
UCF215	75	—	200	159	35	25	57	19	79.5	77.8	33.3	M16	—	UC215	F215	66.30	49.00	2.04	2600	6.6
UCF215-47	—	2-15/16	7-7/8	6-17/64	1-3/8	63/64	2-1/4	3/4	3.1299	3.0630	1.3110	—	5/8	UC215-47
UCF215-48	—	3	7-7/8	6-17/64	1-3/8	63/64	2-1/4	3/4	3.1299	3.0630	1.3110	—	5/8	UC215-48
UCF216	80	—	208	165	35	25	59	23	84.3	82.6	33.3	M20	—	UC216	F216	72.80	53.00	2.16	2400	7.5
UCF216-50	—	3-1/8	8-3/16	6-1/2	1-3/8	63/64	3-21/64	29/32	3.3189	3.2520	1.3110	—	3/4	UC216-50	F216	72.80	53.00	2.16	2400	7.5
UCF217	85	—	220	175	36	25	63	23	87.6	85.7	34.1	M20	—	UC217	F217	83.20	62.00	2.40	2200	9.1
UCF217-52	—	3-1/4	8-21/32	6-57/64	1-27/64	1-1/32	2-15/32	29/32	3.4488	3.3740	1.3425	—	3/4	UC217-52	F217	83.20	62.00	2.40	2200	9.1
UCF218	90	—	235	187	42	26	70	23	98.3	96.0	39.7	M20	—	UC218	F218	95.60	72.00	2.70	2000	11.3
UCF218-56	—	3-1/2	9-1/4	7-23/64	1-21/32	1-1/32	2-3/4	29/32	3.8701	3.7795	1.5630	—	3/4	UC218--56	F218	95.60	72.00	2.70	2000	11.3
