福建福山軸承有限公司

精湛的細節

精湛的細節

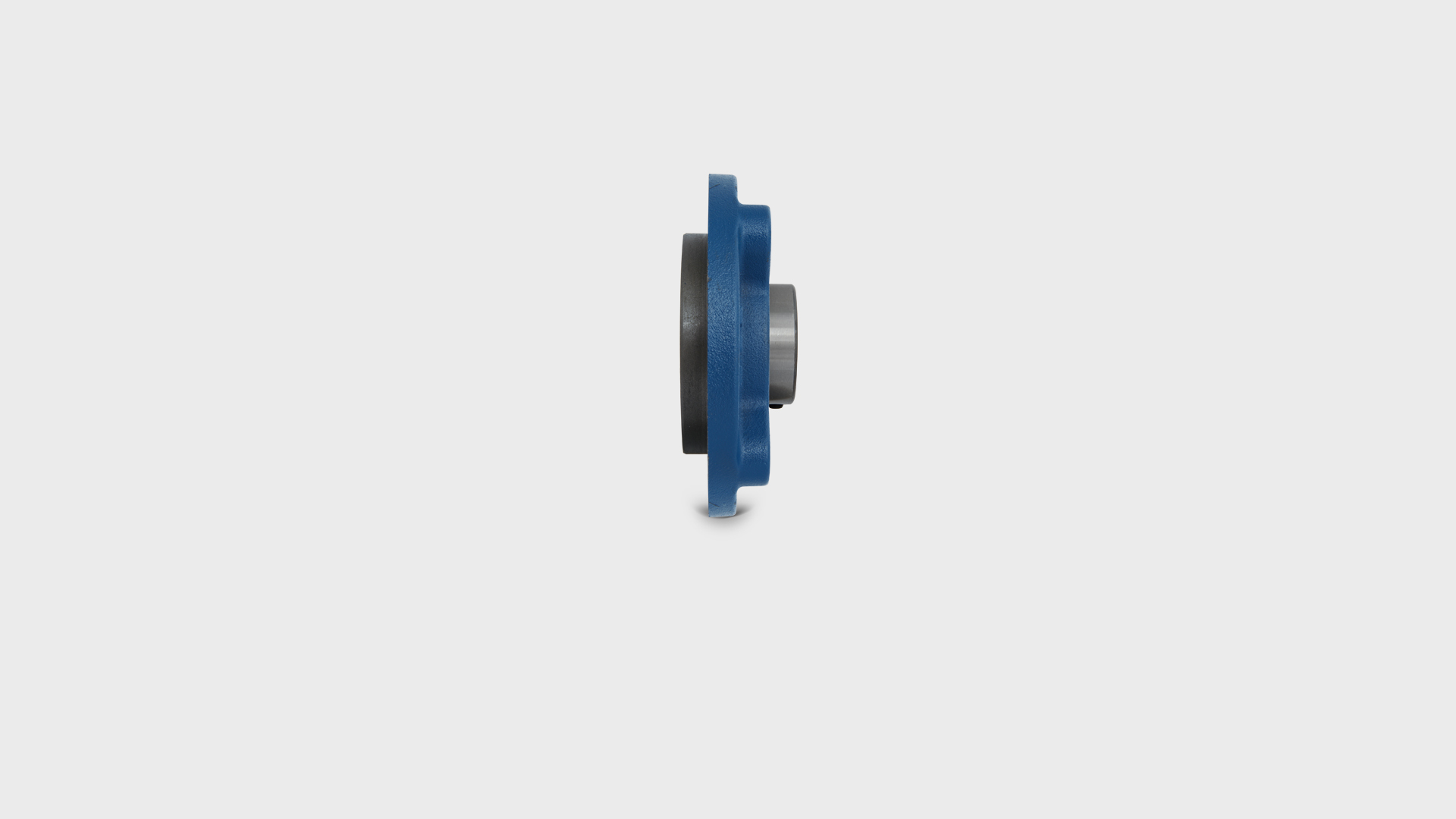

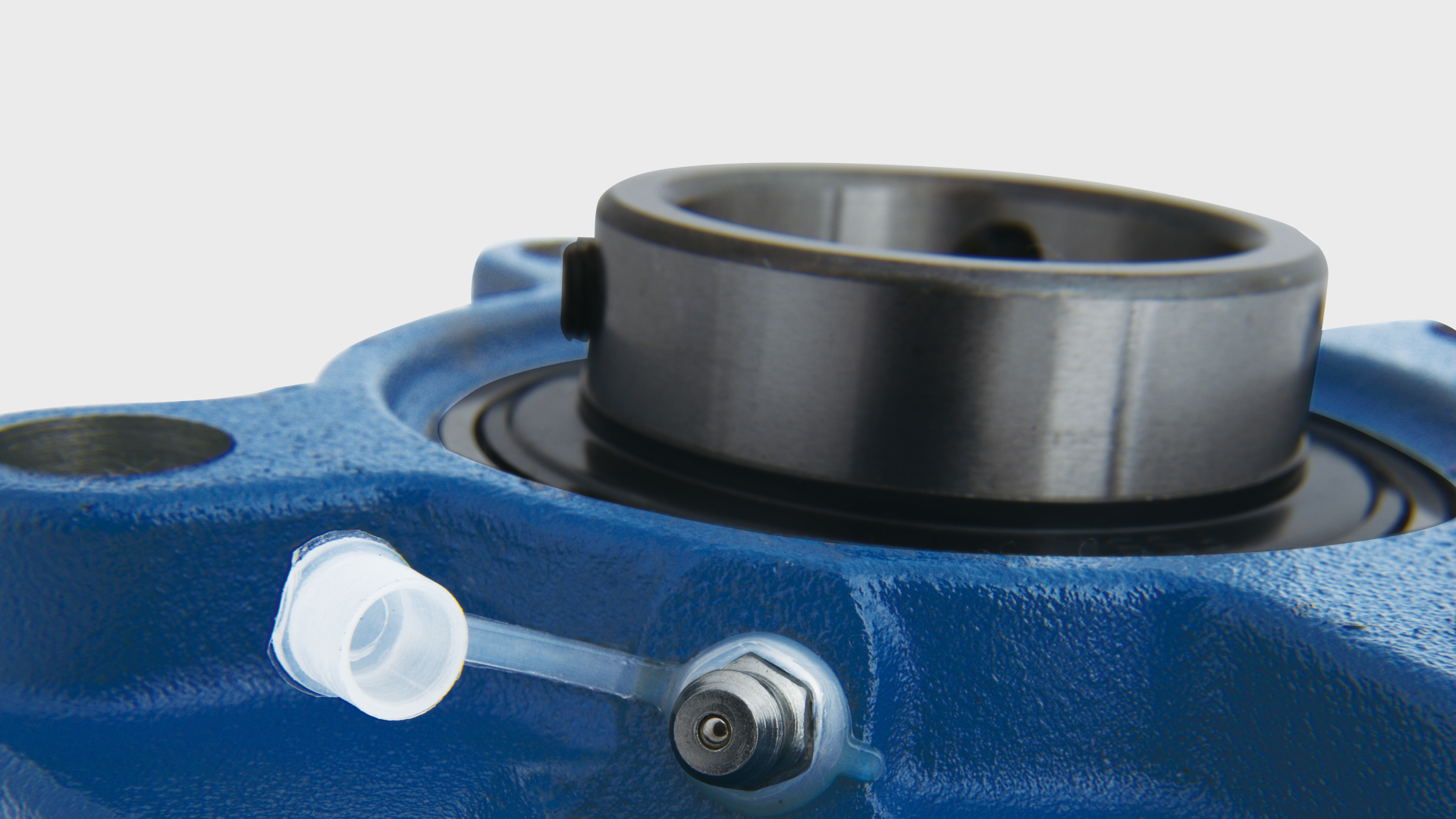

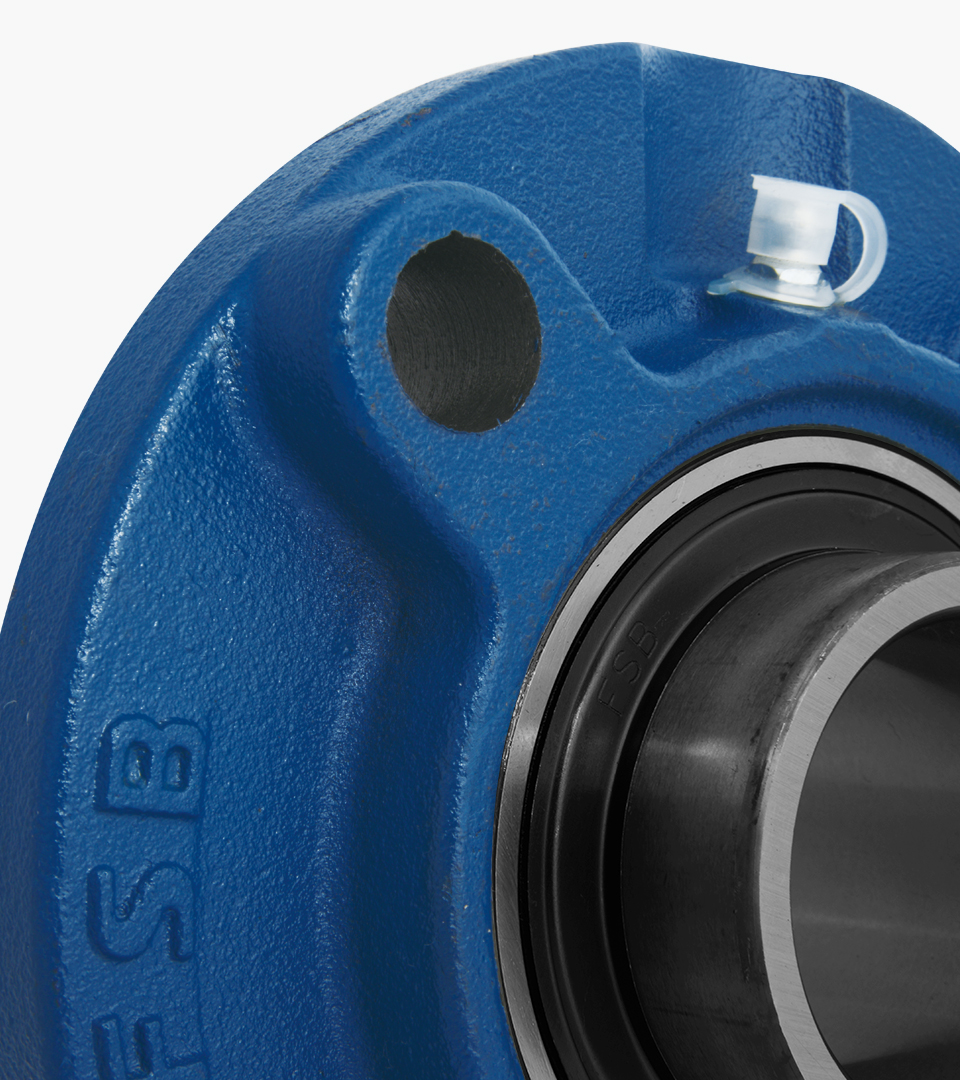

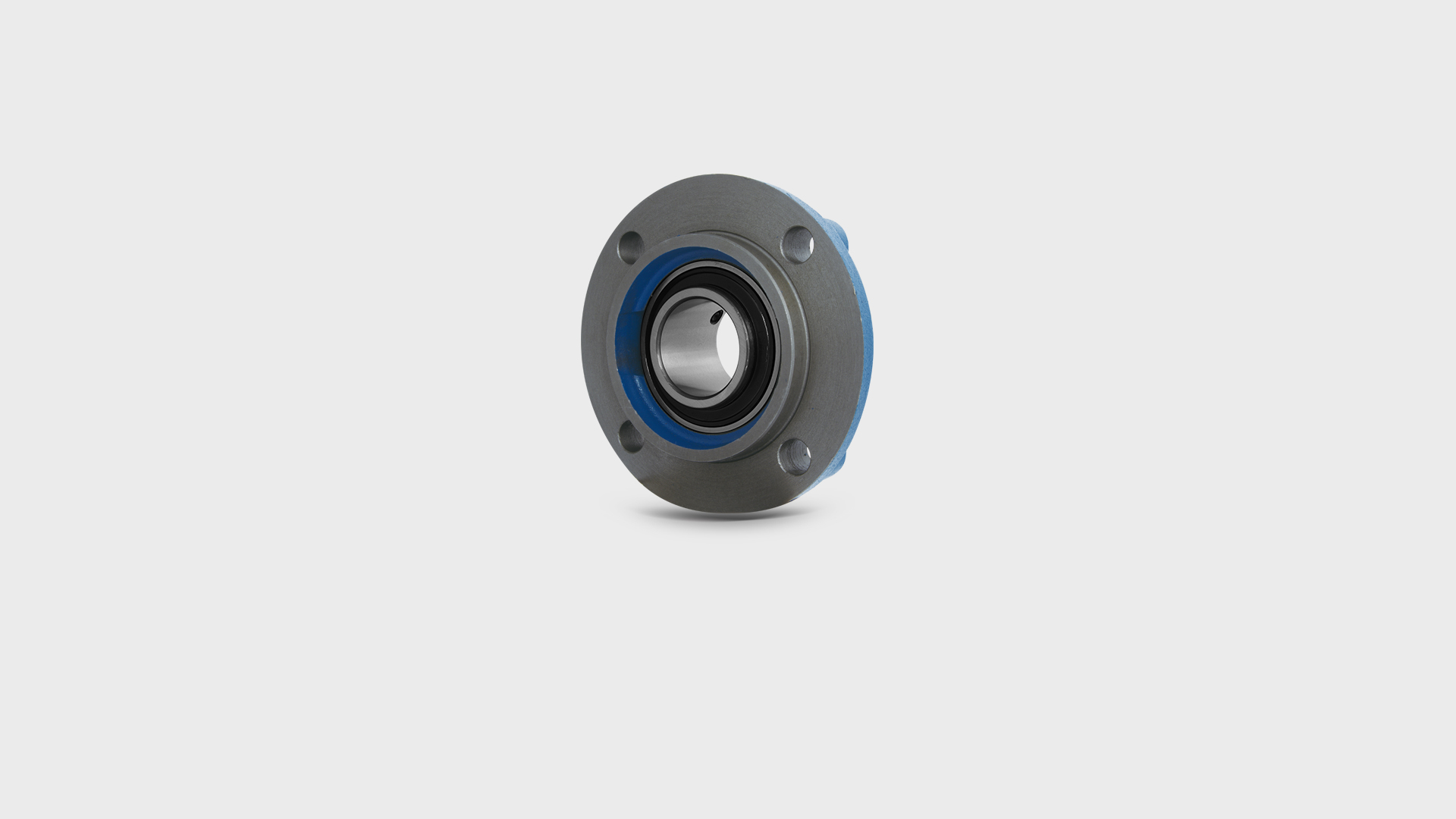

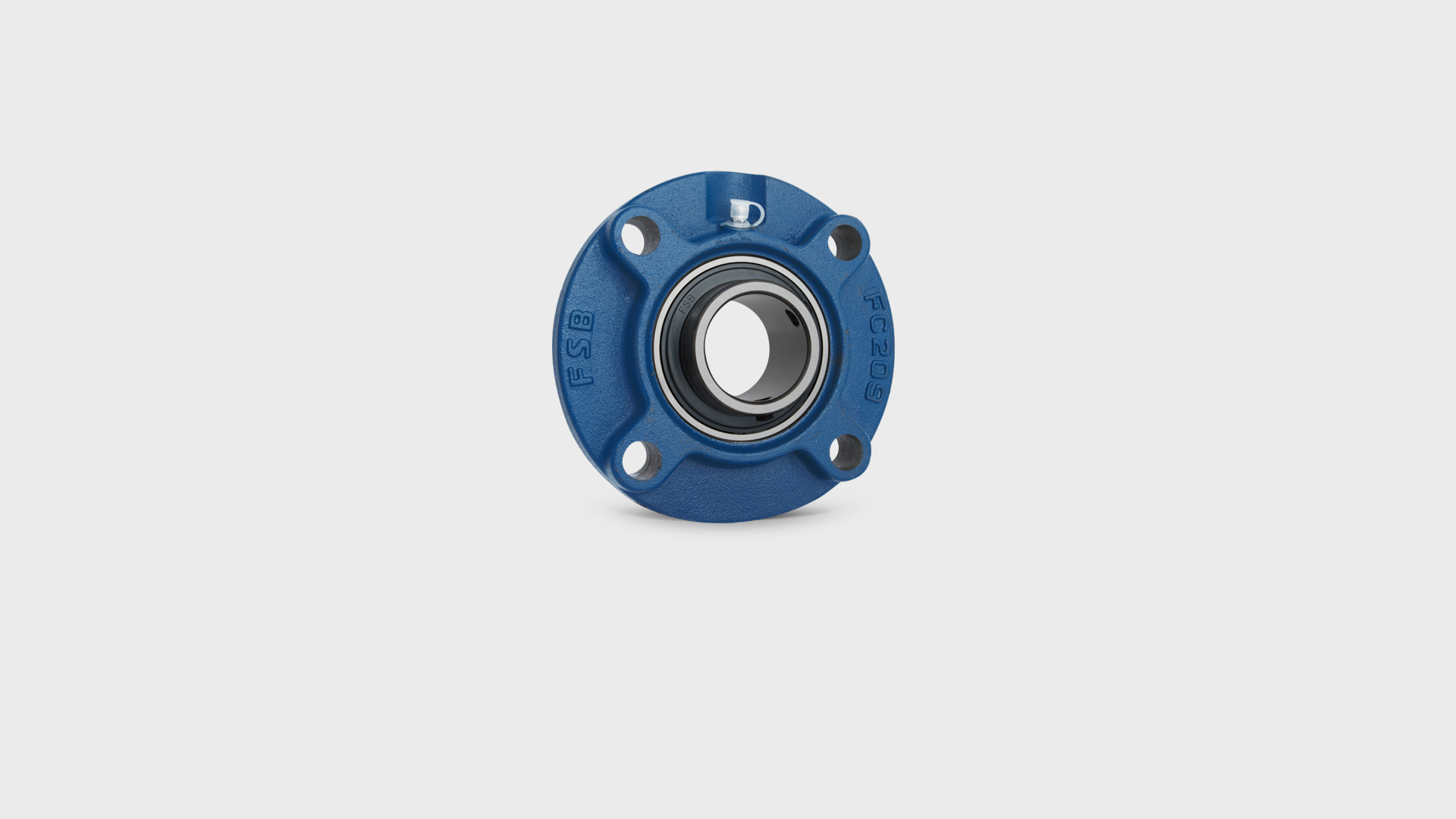

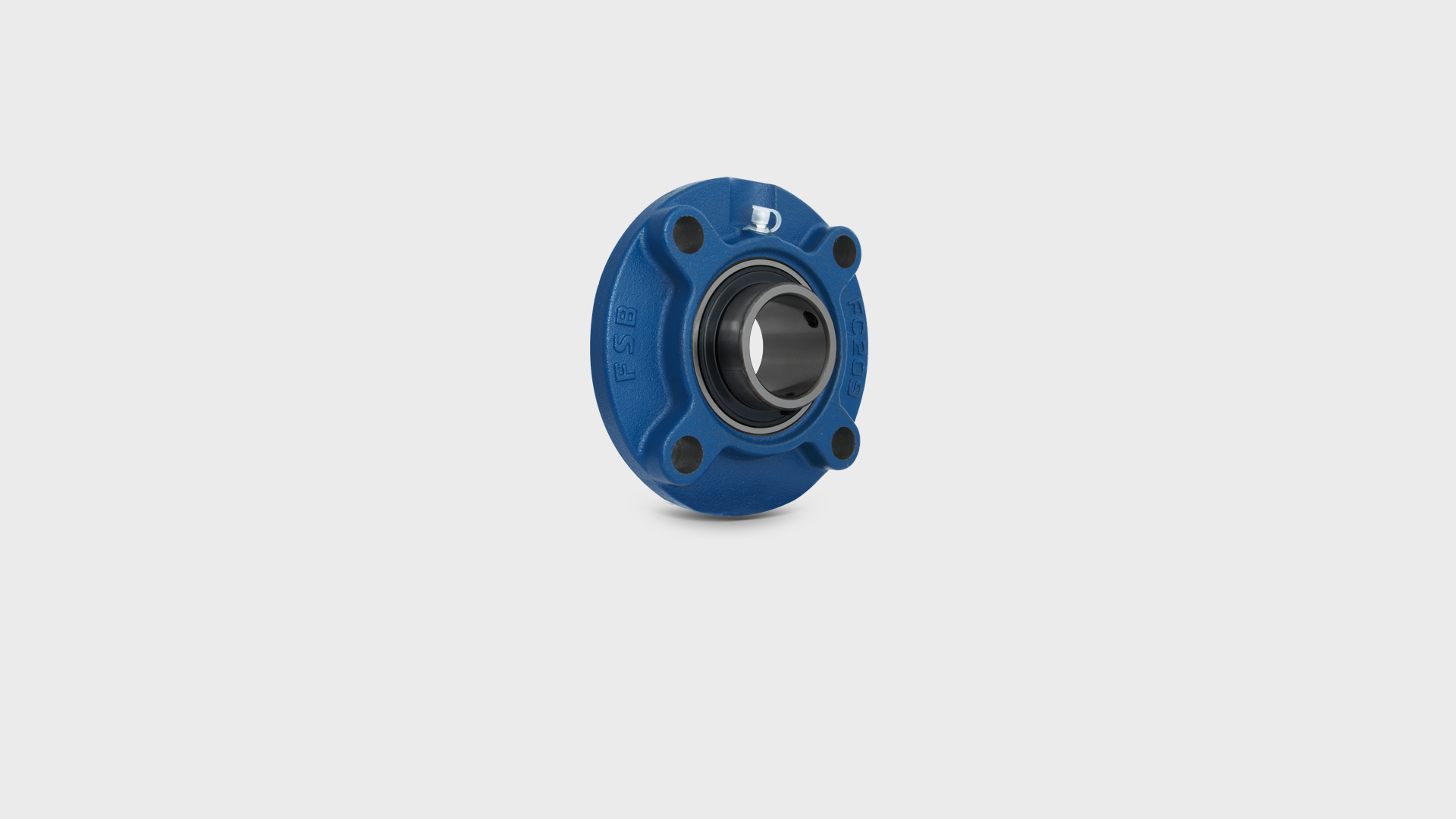

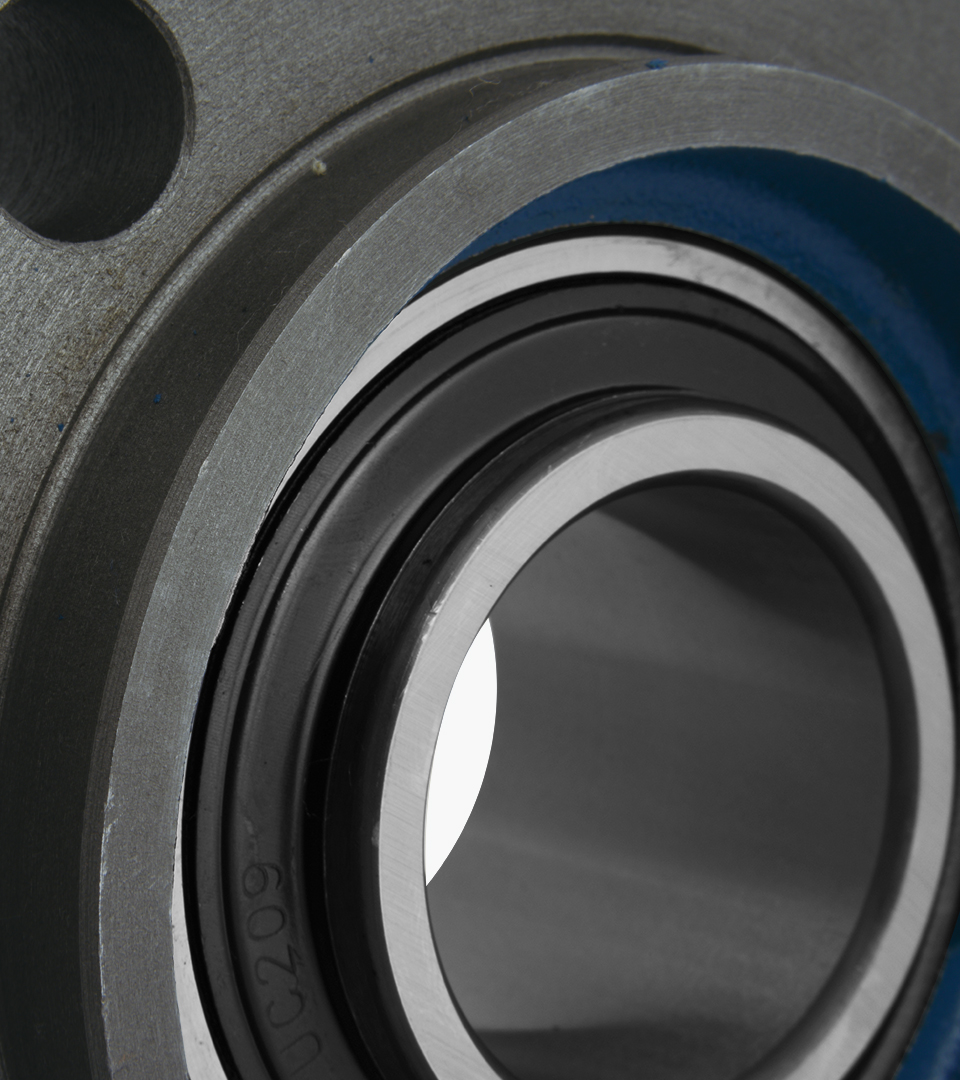

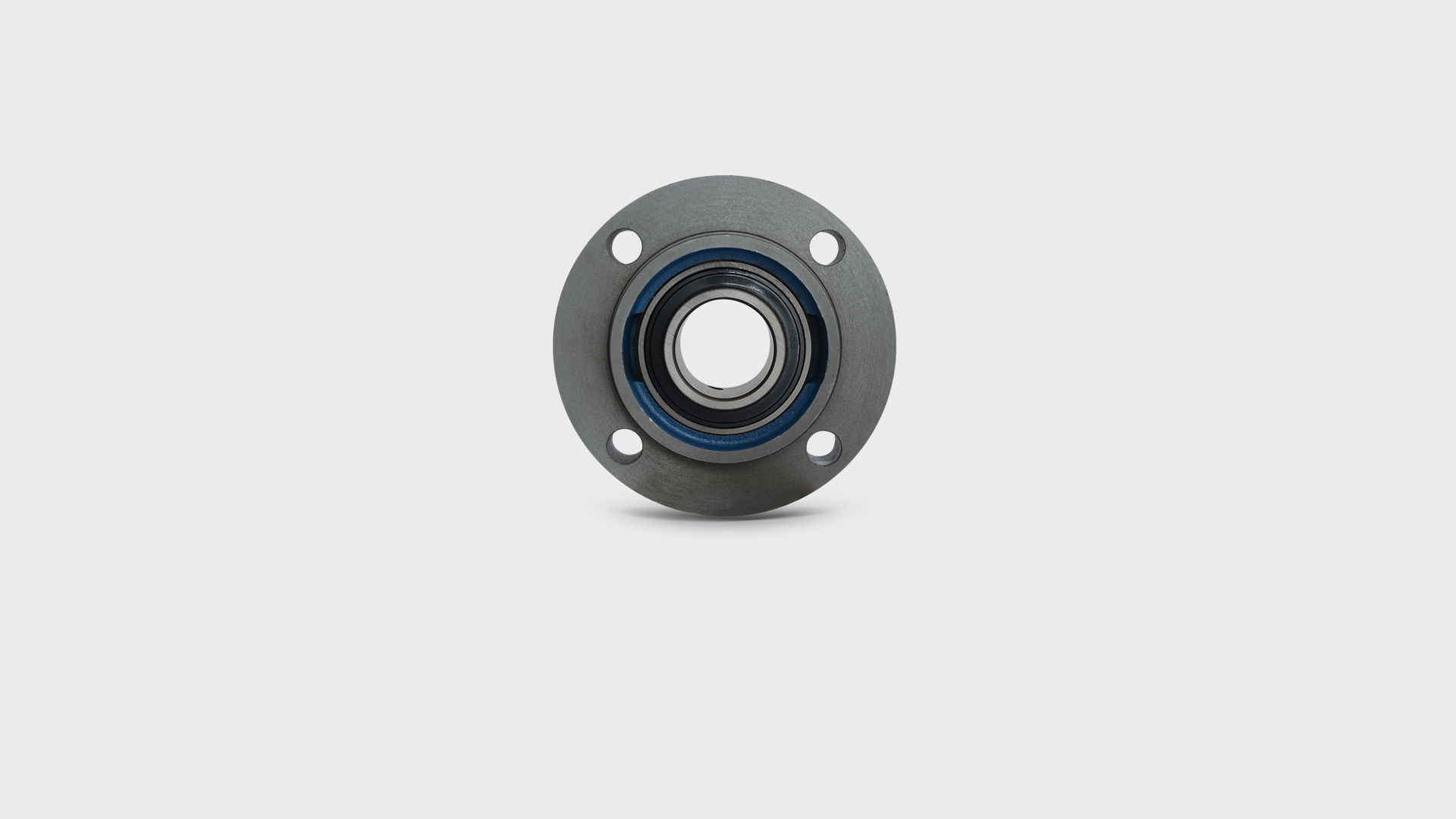

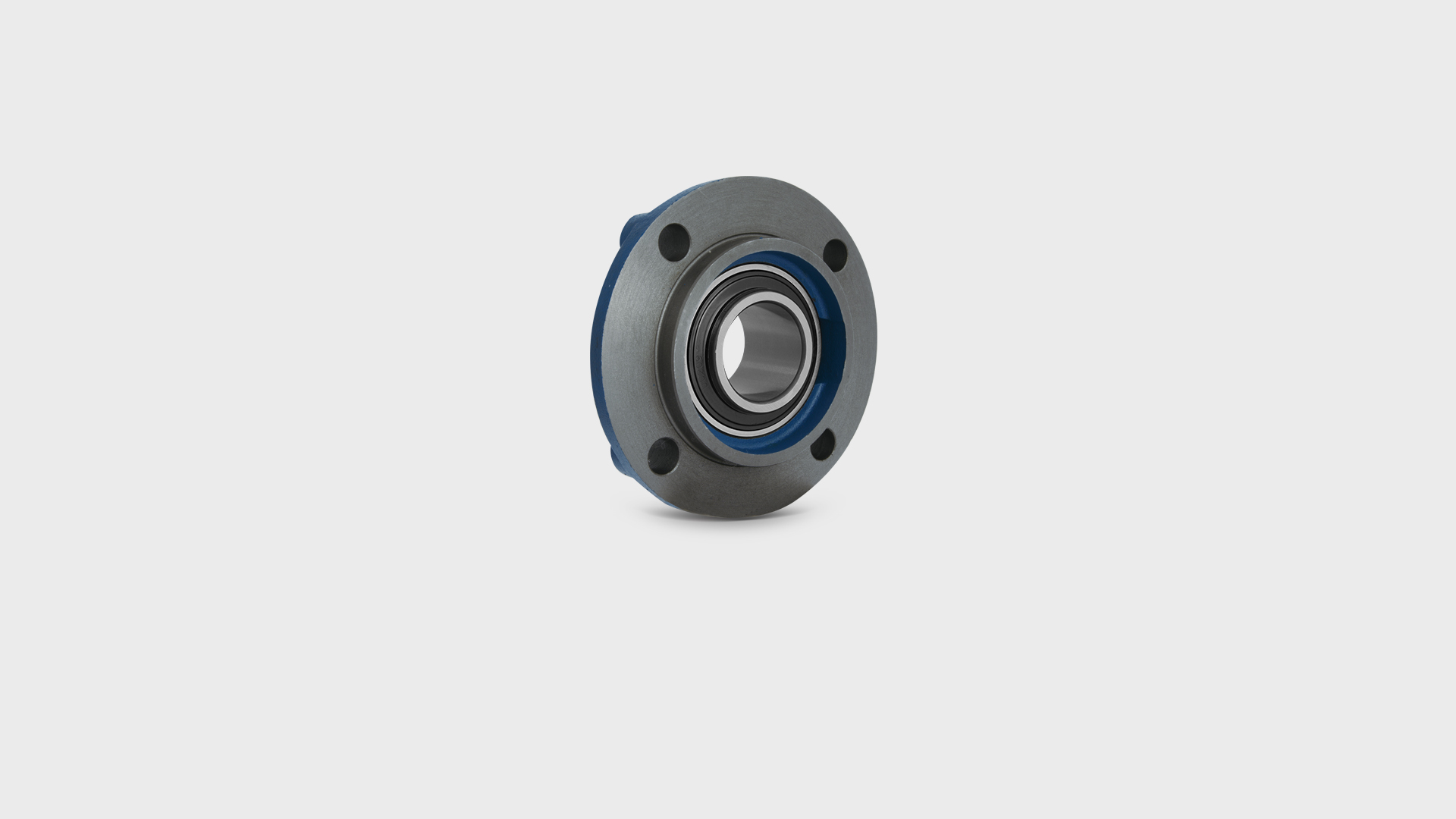

UCFC200

? ? 帶座軸承型號 ? ?	軸徑		尺 ? ? ? ? ? ? ? ? ? ?寸														螺栓		軸承芯型號	軸承座型號	基本額定載荷			疲勞載荷極限	? ? ?極限轉速(SRS) ? ?軸的配合公差(h6)	重量
	mm	in	mm / in														mm	in	—	—	動載荷		靜載荷	疲勞載荷極限	? ? ?極限轉速(SRS) ? ?軸的配合公差(h6)	m

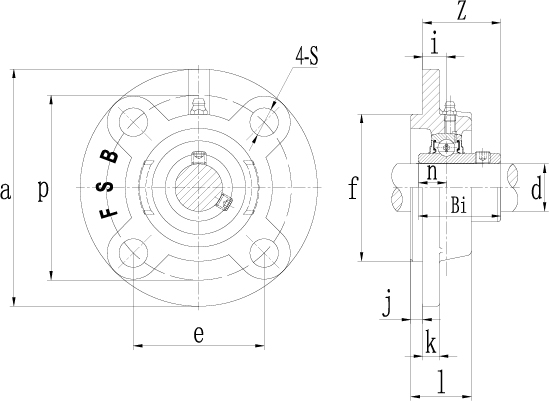

	d		a	p		e	i	l	S	j	k	g	f	Z	Bi	n					Cr		Cor	Cur	r / min	≈Kg
	d		a	p		e	i	l	S	j	k	g	f	Z	Bi	n					KN				r / min	≈Kg
UCFC201	12	?—	100	78		55.1	10	25.5	12	5	7	20.5	62	28.3	31.0	12.7	M10	—	UC201	FC204	12.7		6.55	0.28	8500	0.8
UCFC201-8	—	1/2	3-15/16	3-5/64		2-11/64	25/64	1	15/32	13/64	9/32	13/16	2.4409	1.1142	1.2205	0.5000	—	3/8	UC201-8	FC204	12.7		6.55	0.28	8500	0.8
UCFC202	15	—	100	78		55.1	10	25.5	12	5	7	20.5	62	28.3	31.0	12.7	M10	—	UC202	FC204	12.7		6.55	0.28	8500	0.8
UCFC202-10	—	5/8	3-15/16	3-5/64		2-11/64	25/64	1	15/32	13/64	9/32	13/16	2.4409	1.1142	1.2205	0.5000	—	3/8	UC202-10	FC204	12.7		6.55	0.28	8500	0.8
UCFC203	17	—	100	78		55.1	10	25.5	12	5	7	20.5	62	28.3	31.0	12.7	M10	—	UC203	FC204	12.7		6.55	0.28	8500	0.8
UCFC203-11	—	11/16	3-15/16	3-5/64		2-11/64	25/64	1	15/32	13/64	9/32	13/16	2.4409	1.1142	1.2205	0.5000	—	3/8	UC203-11	FC204	12.7		6.55	0.28	8500	0.8
UCFC204	20	—	100	78		55.1	10	25.5	12	5	7	20.5	62	28.3	31.0	12.7	M10	—	UC204	FC204	12.7		6.55	0.28	8500	0.8
UCFC204-12	—	3/4	3-15/16	3-5/64		2-11/64	25/64	1	15/32	13/64	9/32	13/16	2.4409	1.1142	1.2205	0.5000	—	3/8	UC204-12	FC204	12.7		6.55	0.28	8500	0.8
UCFC205	25	—	115	90		63.6	10	27	12	6	7	21	70	29.7	34.0	14.3	M10	—	UC205	FC205	14.00		7.80	0.34	7000	1.0
UCFC205-14	—	7/8	4-17/32	3-35/64		2-1/2	25/64	1-1/16	15/32	15/64	9/32	53/64	2.7559	1.1693	1.3386	0.5630	—	3/8	UC205-14
UCFC205-15	—	15/16																	UC205-15
UCFC205-16	—	1																	UC205-16
UCFC206	30	—	125	100		70.7	10	31	12	8	8	23	80	32.2	38.1	15.9	M10	—	UC206	FC206	19.50		11.20	0.48	6300	1.4
UCFC206-18	—	1-1/8	4-29/32	3-15/16		2-25/32	25/64	1-7/32	15/32	5/16	5/16	29/32	3.1496	1.2677	1.5000	0.6260	—	3/8	UC206-18
UCFC206-19	—	1-3/16																	UC206-19
UCFC206-20	—	1-1/4																	UC206-20
UCFC207	35	—	135	110		77.8	11	34	14	8	9	26	90	36.4	42.9	17.5	M12	—	UC207	FC207	25.50		15.30	0.66	5300	1.7
UCFC207-20	—	1-1/4	5-5/16	4-21/64		3-1/16	7/16	1-11/32	35/64	5/16	11/32	1-1/32	3.5433	1.4331	1.6890	0.6890	—	7/16	UC207-20
UCFC207-21	—	1-5/16																	UC20721
UCFC207-22	—	1-3/8																	UC207-22
UCFC207-23	—	1-7/16																	UC207-23
UCFC208	40	—	145	120		84.8	11	36	14	10	9	26	100	41.2	49.2	19.0	M12	—	UC208	FC208	30.7		19.00	0.80	4800	2.0
UCFC208-24	—	1-1/2	5-23/32	4-23/32		3-11/32	7/16	1-27/64	35/64	25/64	11/32	1-1/32	3.9370	1.6220	1.9370	0.7480	—	7/16	UC208-24
UCFC208-25	—	1-9/16	5-23/32	4-23/32		3-11/32	7/16	1-27/64	35/64	25/64	11/32	1-1/32	3.9370	1.6220	1.9370	0.7480	—	7/16	UC208-25
UCFC209	45	—	160	132		93.3	10	38	16	12	14	26	105	40.2	49.2	19.0	M14	—	UC209	FC209	33.2		21.6	0.92	4300	2.8
UCFC209-26	—	1-5/8	6-5/16	5-13/64		3-43/64	25/64	1-1/2	5/8	15/32	9/16	1-1/32	4.1339	1.5827	1.9370	0.7480	—	1/2	UC209-26
UCFC209-27	—	1-11/16																	UC209-27
UCFC209-28	—	1-3/4																	UC209-28
UCFC210	50	—	165	138		97.6	10	40	16	12	14	28	110	42.6	51.6	19.0	M14	—	UC210	FC210	35.10		23.20	0.98	4000	3.0
UCFC210-30	—	1-7/8	6-1/2	5-7/16		3-27/32	25/64	1-9/16	5/8	15/32	9/16	1-3/32	4.3307	1.6772	2.0315	0.7480	—	1/2	UC210-30
UCFC210-31	—	1-15/16	6-1/2	5-7/16		3-27/32	25/64	1-9/16	5/8	15/32	9/16	1-3/32	4.3307	1.6772	2.0315	0.7480	—	1/2	UC210-31
UCFC211	55	—	185	150		106.1	13	43	19	12	15	31	125	46.4	55.6	22.2	M16	—	UC211	FC211	43.60		29.00	1.25	3600	4.0
UCFC211-32	—	2	7-9/32	5-29/32		4-11/64	33/64	1-11/16	3/4	15/32	19/32	1-7/32	4.9213	1.8268	2.1890	0.8740	—	5/8	UC211-32
UCFC211-34	—	2-1/8																	UC211-34
UCFC211-35	—	2-3/16																	UC211-35
UCFC212	60	—	195	160		113.1	17	48	19	12	15	36	135	56.7	65.1	25.4	M16	—	UC212	FC212	52.70		36.00	1.53	3400	4.7
UCFC212-36	—	2-1/4	7-11/16	6-19/64		4-29/64	43/64	1-7/8	3/4	15/32	19/32	1-27/64	5.3150	2.2323	2.5630	1.0000	—	5/8	UC212-36
UCFC212-38	—	2-3/8																	UC21238
UCFC212-39	—	2-7/16																	UC212-39
UCFC213	65	—	205	170		120.2	16	50	19	14	15	36	145	55.7	65.1	25.4	M16	—	UC213	FC213	57.20		40.00	1.70	3000	5.4
UCFC213-40	—	2-1/2	8-1/16	6-11/16		4-47/64	5/8	1-31/32	3/4	35/64	19/32	1-27/64	5.7087	2.1929	2.5630	1.0000	—	5/8	UC213-40	FC213	57.20		40.00	1.70	3000	5.4
UCFC214	70	—	215	177		125.1	17	54	19	14	18	40	150	61.4	74.6	30.2	M16	—	UC214	FC214	62.40		45.00	1.86	2800	6.8
UCFC214-44	—	2-3/4	8-15/32	6-31/32		4-59/64	43/64	2-1/8	3/4	35/64	23/32	1-9/16	5.9055	2.4173	2.9370	1.1890	—	5/8	UC214-44	FC214	62.40		45.00	1.86	2800	6.8
UCFC215	75	—	220	184		130.1	18	56	19	16	18	40	160	62.5	77.8	33.3	M16	—	UC215	FC215	66.30		49.00	2.04	2600	7.3
UCFC215-48	—	3	8-21/32	7-1/4		5-1/8	45/64	2-7/32	3/4	5/8	23/32	1-9/16	6.2992	2.4606	3.0630	1.3110	—	5/8	UC215-48	FC215	66.30		49.00	2.04	2600	7.3
UCFC216	80	—	240	200		141.4	18	58	23	16	18	42	170	67.3	82.6	33.3	M20	—	UC216	FC216	72.80		53.00	2.16	2400	8.9
UCFC216	—	—	9-7/16	7-7/8		5-9/16	45/64	2-9/32	29/32	5/8	23/32	1-21/32	6.6929	2.6496	3.2520	1.3110	—	3/4	UC216	FC216	72.80		53.00	2.16	2400	8.9
UCFC217	85	—	250	208		147.1	18	63	23	18	20	45	180	69.6	85.7	34.1	M20	—	UC217	FC217	83.20		62.00	2.40	2200	10.4
UCFC217-52	—	3-1/4	9-27/32	8-3/16		5-51/64	45/64	2-15/32	29/32	45/64	25/32	1-25/32	7.0886	2.7402	3.3740	1.3425	—	3/4	UC217-52	FC217	83.20		62.00	2.40	2200	10.4
UCFC218	90	—	265	220		155.5	22	68	23	18	20	50	190	78.3	96.0	39.7	M20	—	UC218	FC218	95.60		72.00	2.70	2000	13.0
UCFC218-56	—	3-1/2	10-7/16	8/21/32		6-1/8	55/64	2-11/16	29/32	45/64	25/32	1-31/32	7.4803	3.0827	3.7795	1.5630	—	3/4	UC218-56	FC218	95.60		72.00	2.70	2000	13.0
