福建福山軸承有限公司

精湛的細節

精湛的細節

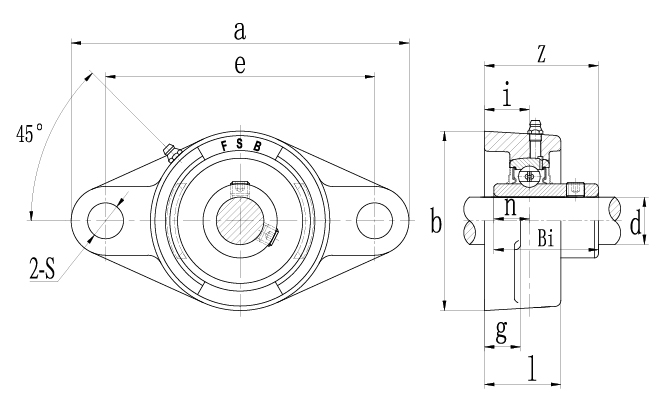

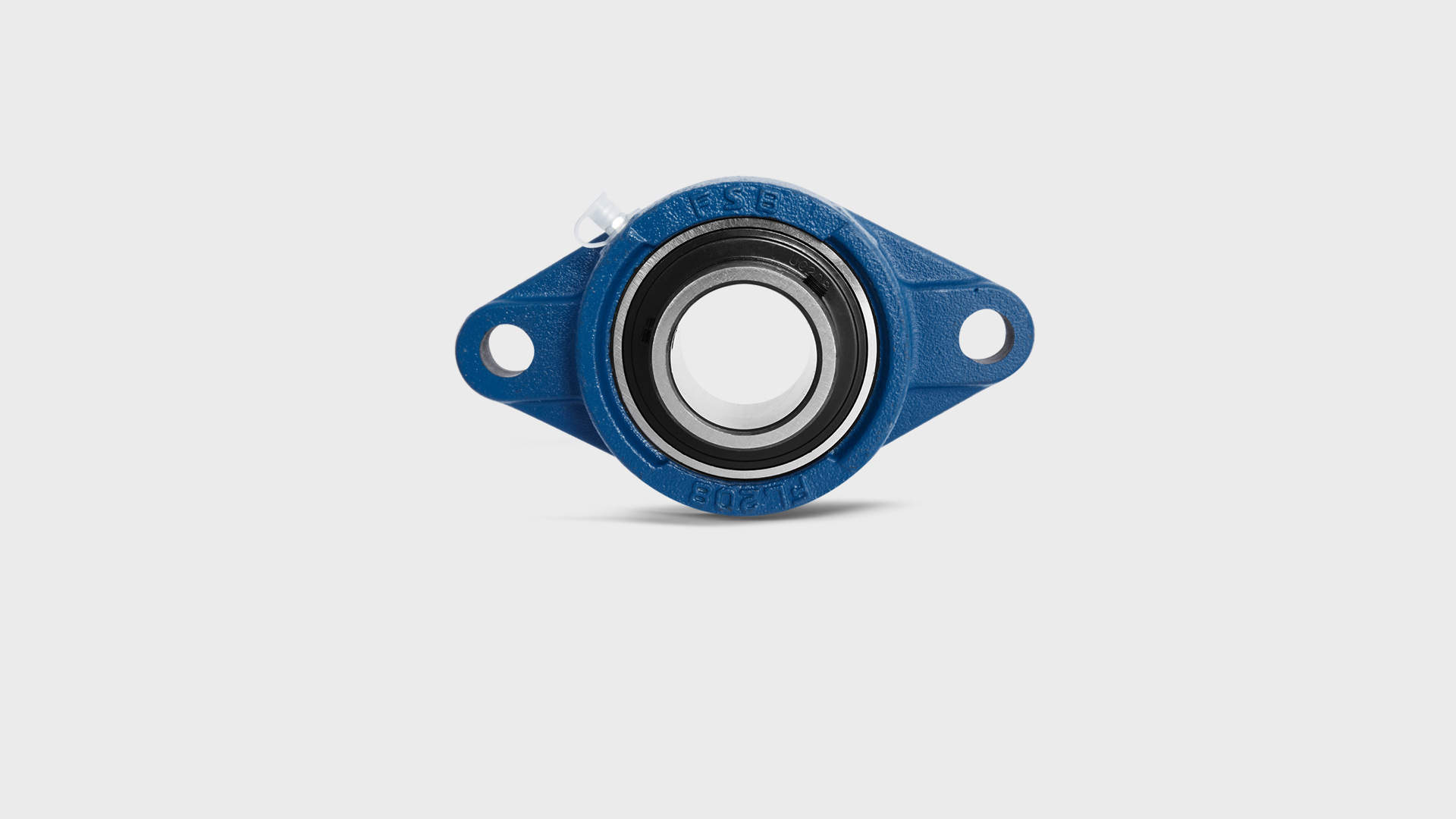

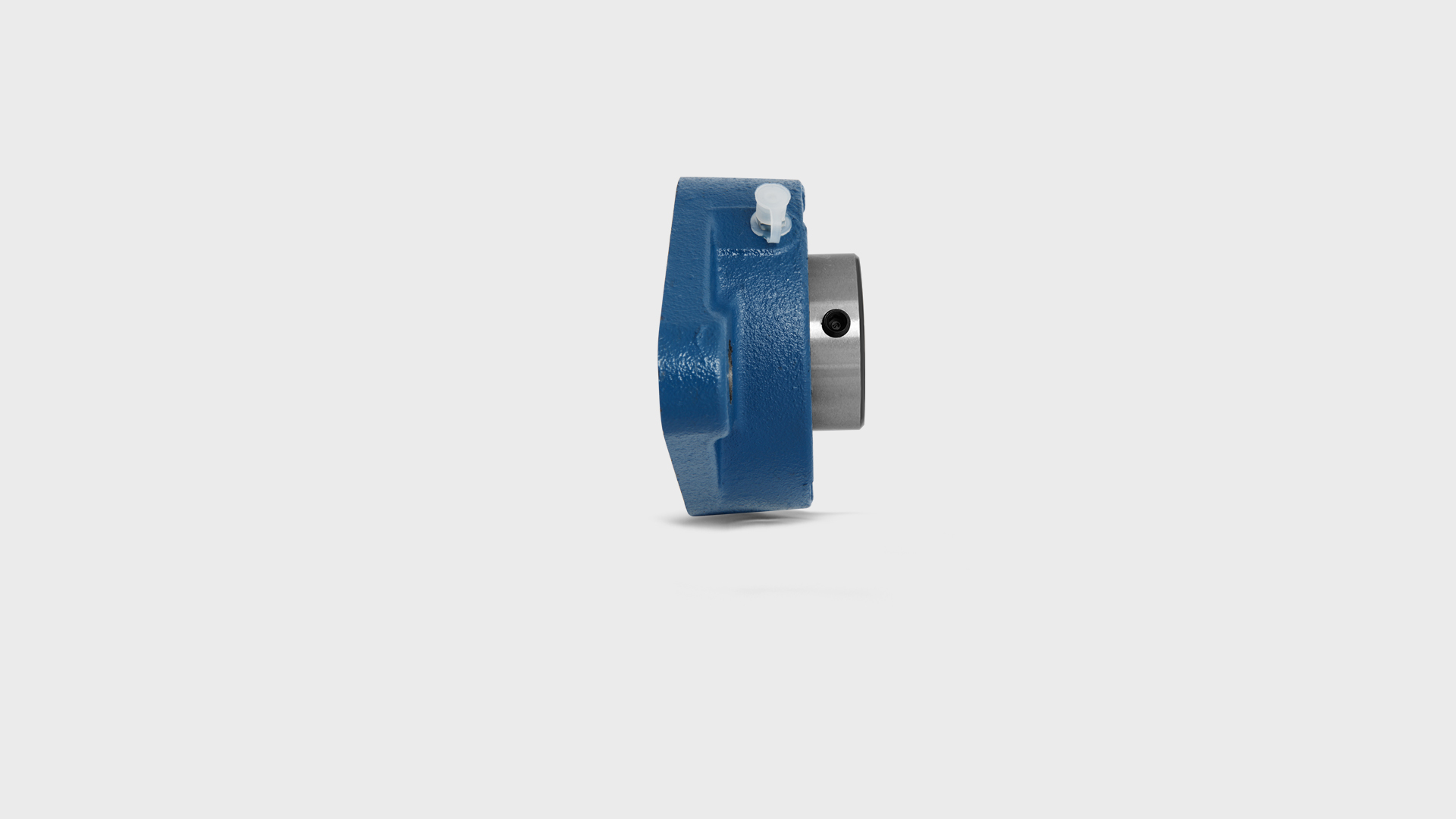

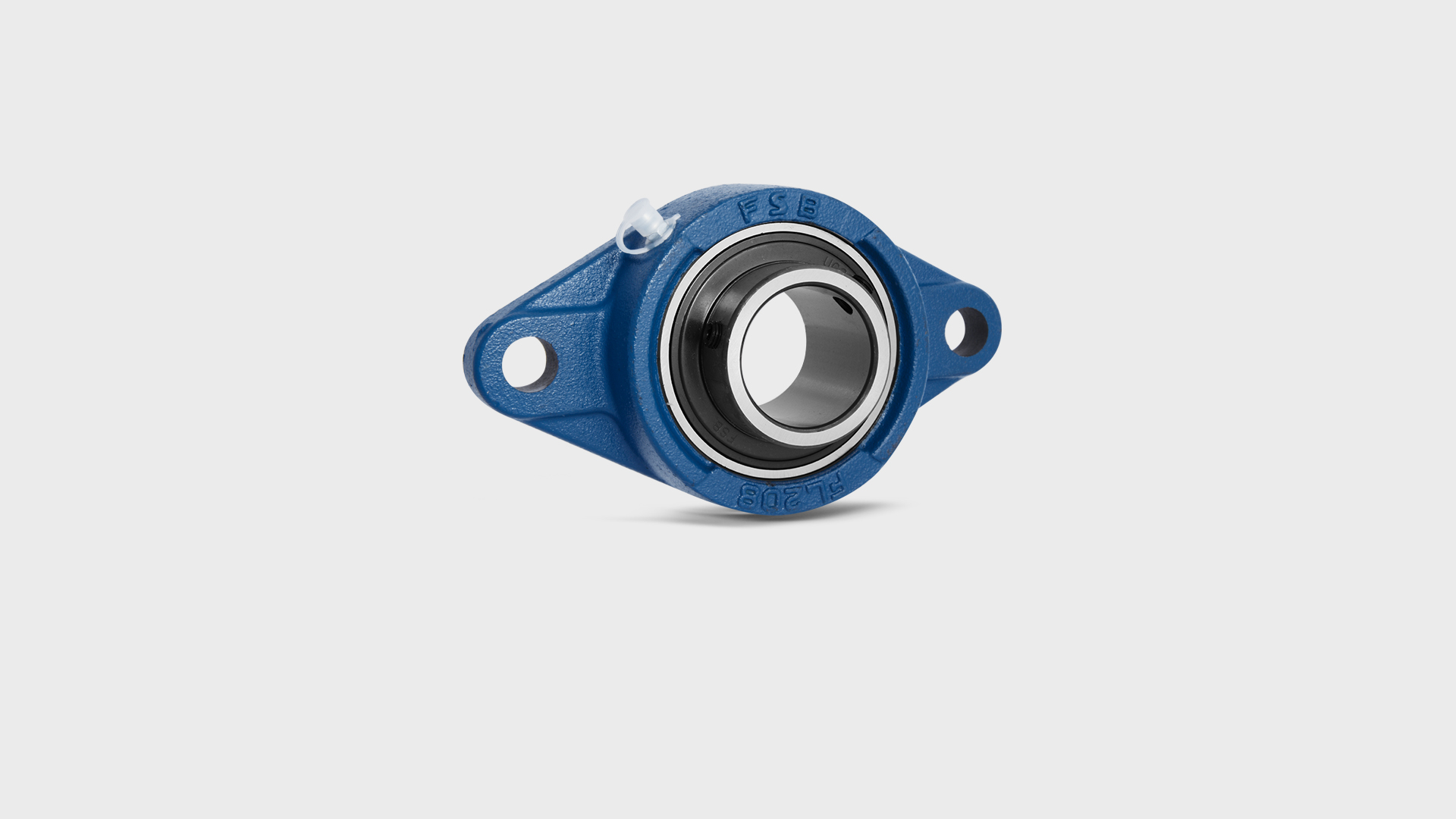

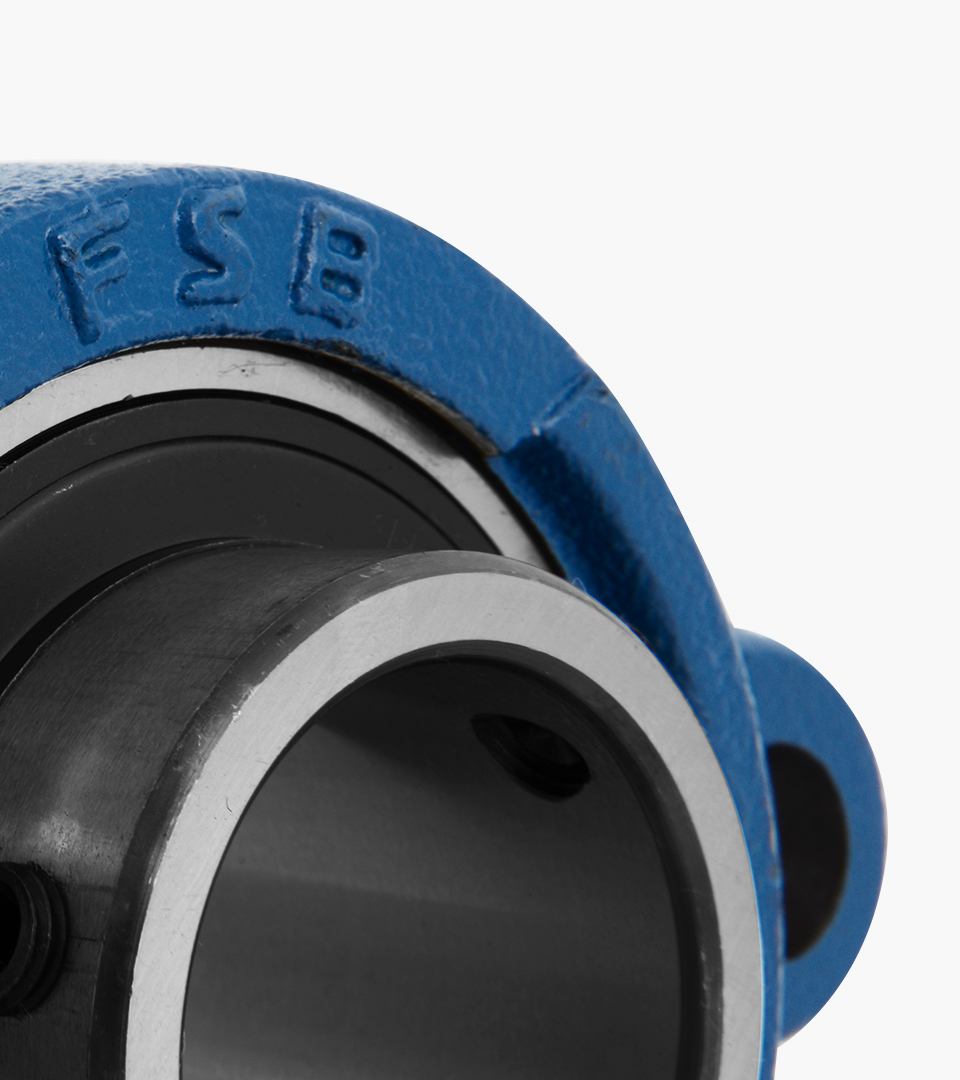

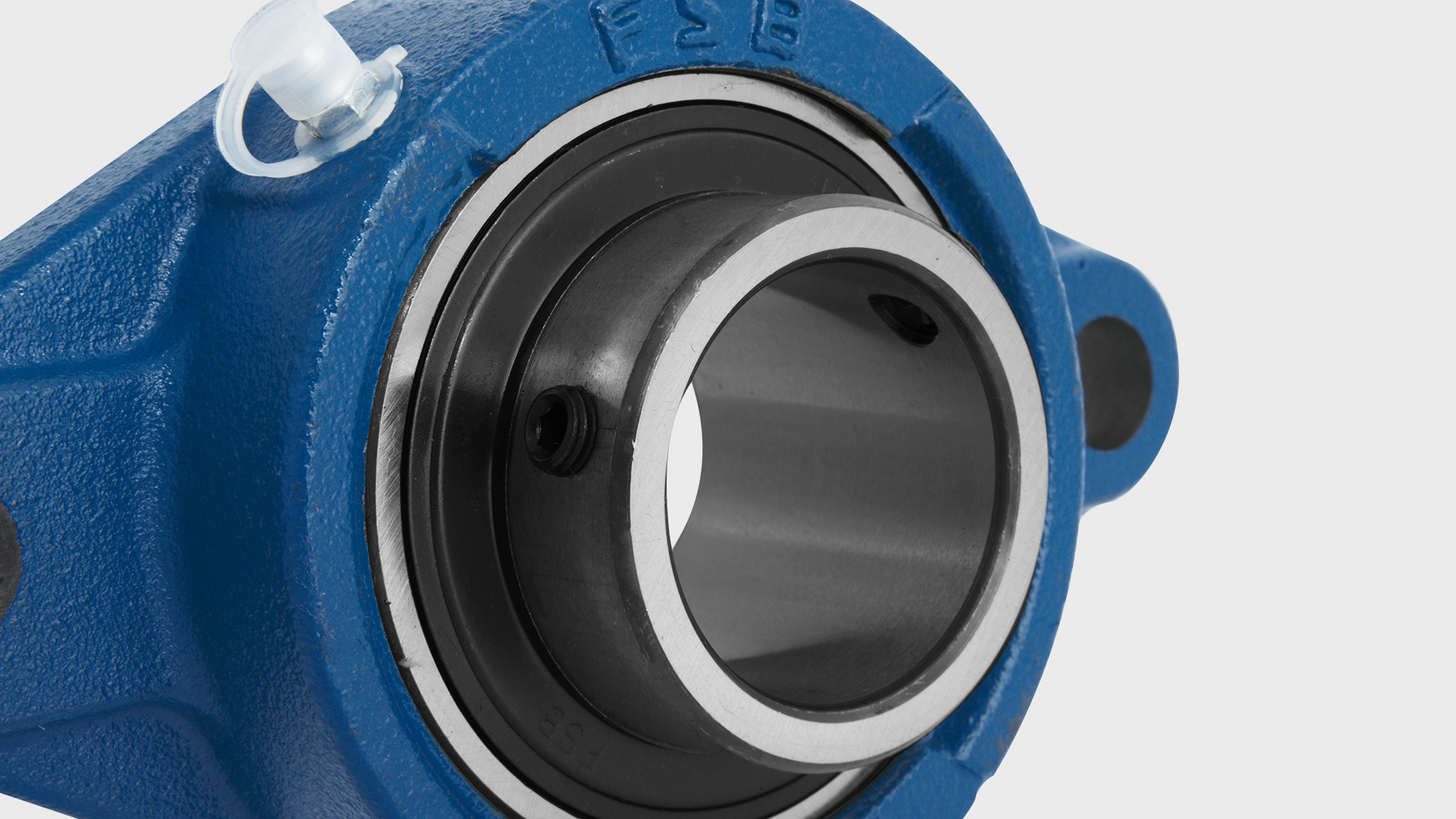

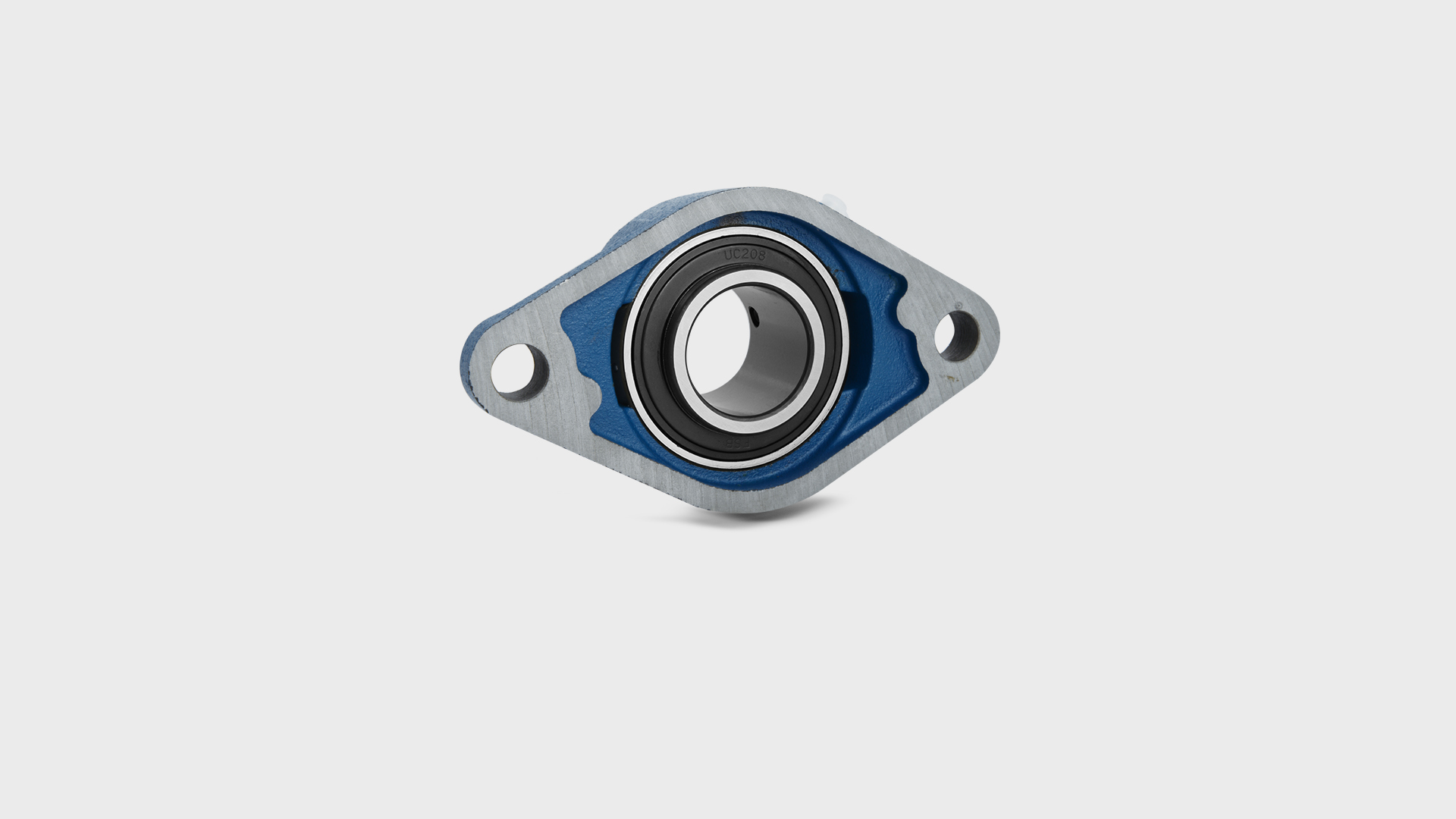

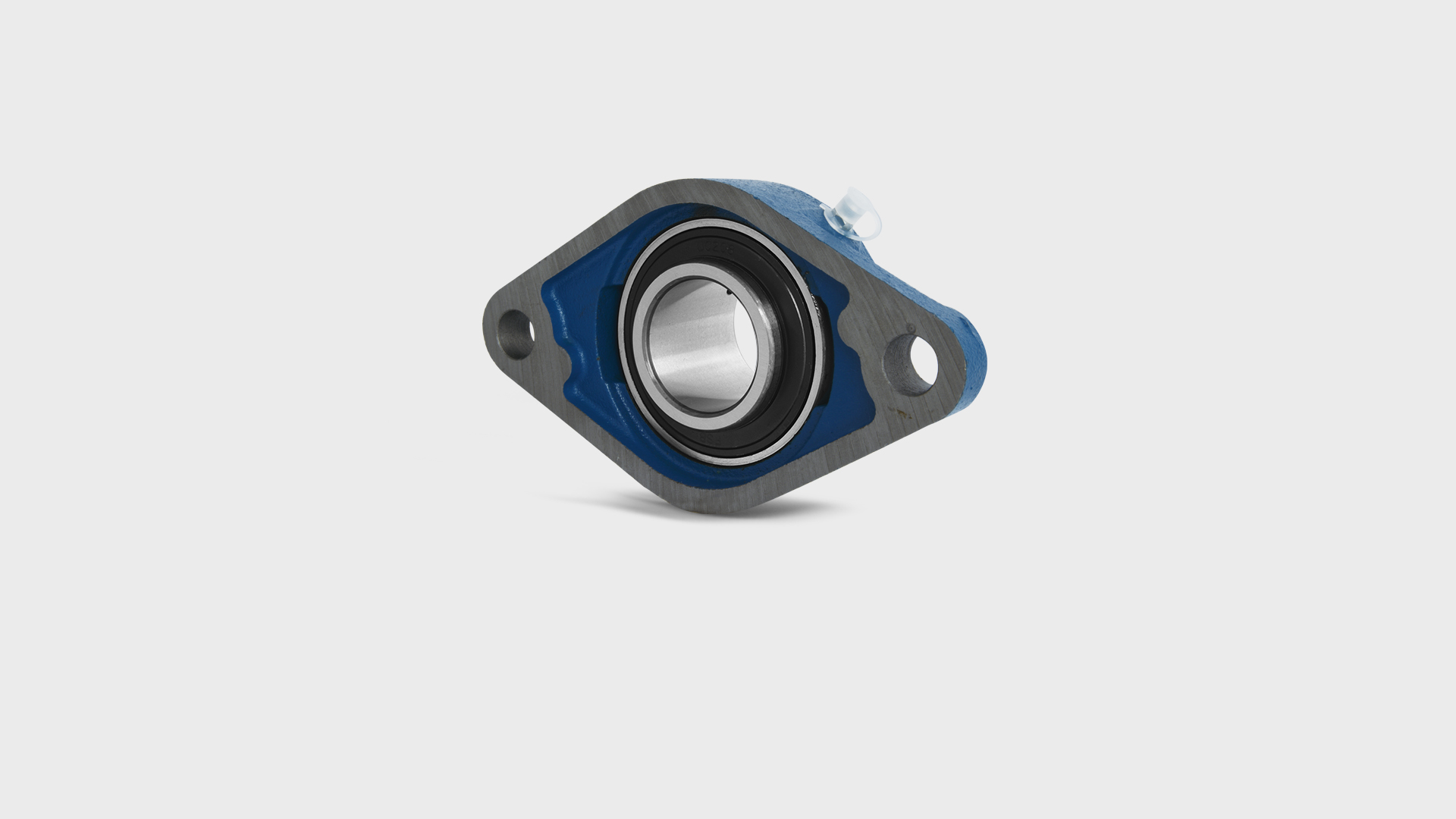

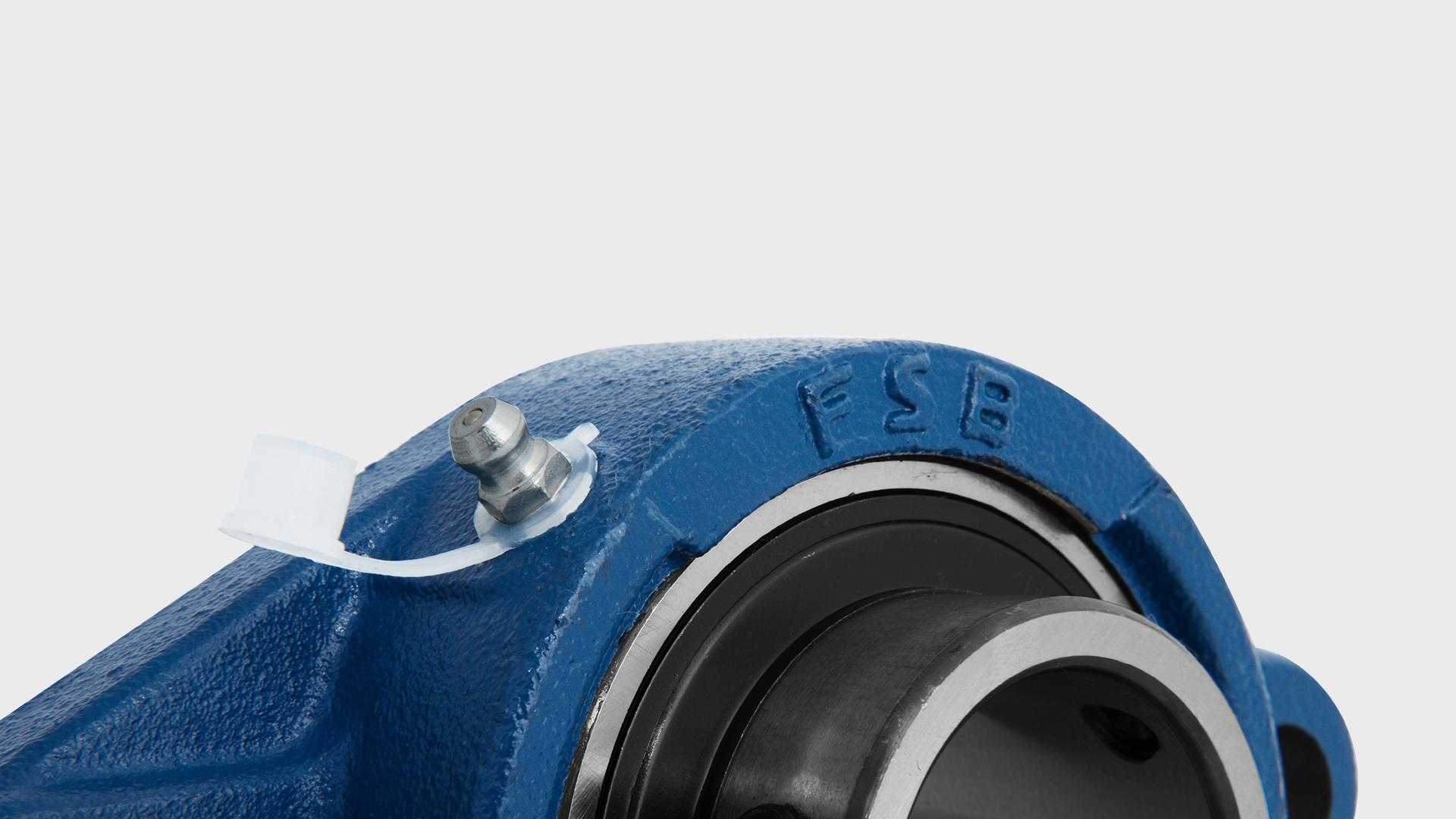

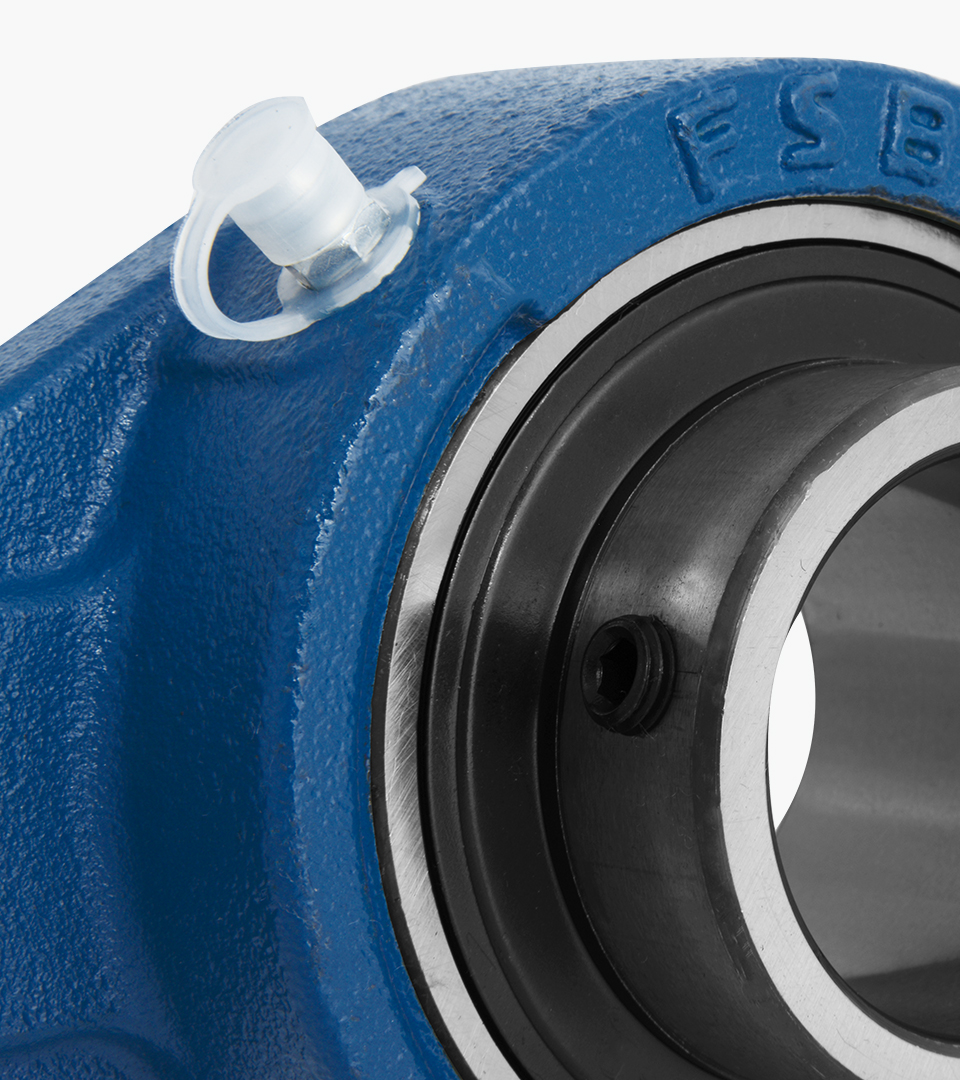

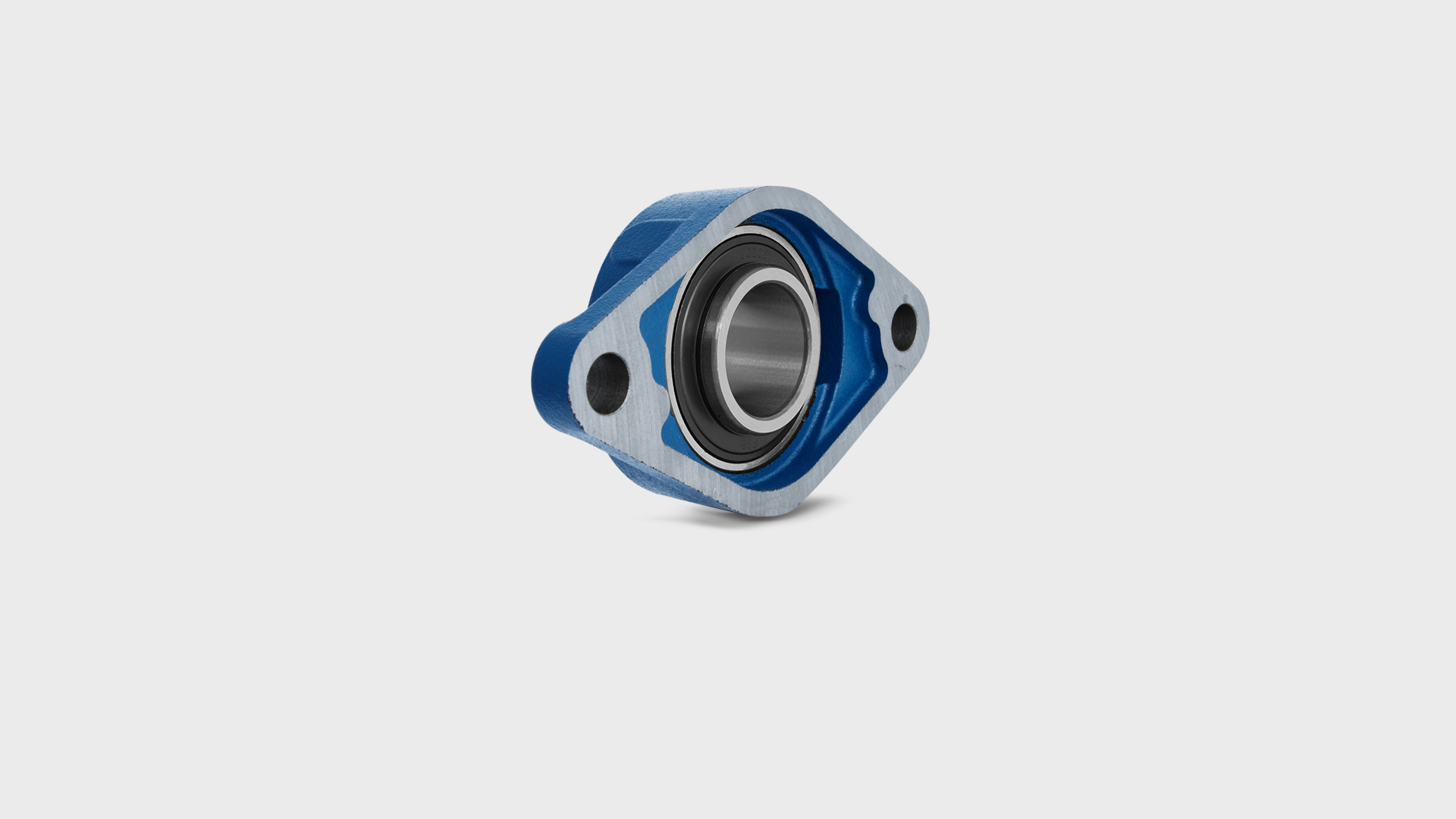

UCFL200

帶座軸承型號 ? ?	軸徑		尺 ? ? ? ? ? ? ? 寸										螺栓		軸承芯型號	軸承座型號	基本額定載荷			疲勞極限載荷	?極限轉速(SRS) 軸的配合公差(h6)	?重量
	mm	in	mm / in										mm	in	—	—	動載荷		靜載荷	疲勞極限載荷	?極限轉速(SRS) 軸的配合公差(h6)	m
	d		a	e	i	g	l	S	b	Z	Bi	n					Cr		Cor	Cur	r / min	≈Kg
	d		a	e	i	g	l	S	b	Z	Bi	n					KN				r / min	≈Kg
UCFL201	12	—	113	90	15	12	25.5	12	60	33.3	31.0	12.7	M10	—	UC201	FL204	12.70		6.55	0.28	8500	0.5
UCFL201-8	—	1/2	4-7/16	3-35/64	19/32	15/32	1	15/32	2-3/8	1.3110	1.2205	0.5000	—	3/8	UC201-8	FL204	12.70		6.55	0.28	8500	0.5
UCFL202	15	—	113	90	15	12	25.5	12	60	33.3	31.0	12.7	M10	—	UC202	FL204	12.70		6.55	0.28	8500	0.5
UCFL202-10	—	5/8	4-7/16	3-35/64	19/32	15/32	1	15/32	2-3/8	1.3110	1.2205	0.5000	—	3/8	UC202-10	FL204	12.70		6.55	0.28	8500	0.5
UCFL203	17	—	113	90	15	12	25.5	12	60	33.3	31.0	12.7	M10	—	UC203	FL204	12.70		6.55	0.28	8500	0.5
UCFL203-11	—	11/16	4-7/16	3-35/64	19/32	15/32	1	15/32	2-3/8	1.3110	1.2205	0.5000	—	3/8	UC203-11	FL204	12.70		6.55	0.28	8500	0.5
UCFL204	20	—	113	90	15	12	25.5	12	60	33.3	31.0	12.7	M10	—	UC204	FL204	12.70		6.55	0.28	8500	0.5
UCFL204-12	—	3/4	4-7/16	3-35/64	19/32	15/32	1	15/32	2-3/8	1.3110	1.2205	0.5000	—	3/8	UC204-12	FL204	12.70		6.55	0.28	8500	0.5
UCFL205	25	—	130	99	16	14	27	16	68	35.7	34.0	14.3	M14	—	UC205	FL205	14.00		7.80	0.34	7000	0.6
UCFL205-14	—	7/8	5-1/8	3-57/64	5/8	9/16	1-1/16	5/8	2-11/16	1.4055	1.3386	0.5630	—	1/2	UC205-14
UCFL205-15	—	15/16													UC205-15
UCFL205-16	—	1													UC205-16
UCFL206	30	—	148	117	18	14	31	16	80	40.2	38.1	15.9	M14	—	UC206	FL206	19.50		11.20	0.48	6300	0.9
UCFL206-18	—	1-1/8	5-13/16	4-39/64	45/64	9/16	1-7/32	5/8	3-5/32	1.5827	1.5000	0.6260	—	1/2	UC206-18
UCFL206-19	—	1-3/16													UC206-19
UCFL206-20	—	1-1/4													UC206-20
UCFL207	35	—	161	130	19	16	34	16	90	44.4	42.9	17.5	M14	—	UC207	FL207	25.50		15.30	0.66	5300	1.2
UCFL207-20	—	1-1/4	6-11/32	5-1/8	3/4	5/8	1-11/32	5/8	3-17/32	1.7480	1.6890	0.6890	—	1/2	UC207-20
UCFL207-21	—	1-5/16													UC207-21
UCFL207-22	—	1-3/8													UC207-22
UCFL207-23	—	1-7/16													UC207-23
UCFL208	40	—	175	144	21	16	36	16	100	51.2	49.2	19.0	M14	—	UC208	FL208	30.70		19.0	0.80	4800	1.6
UCFL208-24	—	1-1/2	6-7/8	5-43/64	53/64	5/8	1-13/32	5/8	3-15/16	2.0157	1.9370	0.7480	—	1/2	UC208-24
UCFL208-25	—	1-9/16	6-7/8	5-43/64	53/64	5/8	1-13/32	5/8	3-15/16	2.0157	1.9370	0.7480	—	1/2	UC208-25
UCFL209	45	—	188	148	22	18	38	19	108	52.2	49.2	19.0	M16	—	UC209	FL209	33.20		21.60	0.92	4300	1.9
UCFL209-26	—	1-5/8	7-13/32	5-53/64	55/64	23/32	1-1/2	3/4	4-1/4	2.0551	1.9370	0.7480	—	5/8	UC209-26
UCFL209-27	—	1-11/16													UC209-27
UCFL209-28	—	1-3/4													UC209-28
UCFL210	50	—	197	157	22	18	40	19	115	54.6	51.6	19.0	M16	—	UC210	FL210	35.10		23.20	0.98	4000	2.2
UCFL210-30	—	1-7/8	7-3/4	6-3/16	55/64	23/32	1-9/16	3/4	4-17/32	2.1496	2.0315	0.7480	—	5/8	UC210-30
UCFL210-31	—	1-15/16													UC210-31
UCFL210-32	—	2													UC210-32
UCFL211	55	—	224	184	25	20	43	19	130	58.4	55.6	22.2	M16	—	UC211	FL211	43.60		29.00	1.25	3600	3.2
UCFL211-32	—	2	8-13/16	7-1/4	63/64	25/32	1-11/16	3/4	5-1/8	2.2992	2.1890	0.8740	—	5/8	UC211-32
UCFL211-34	—	2-1/8													UC211-34
UCFL211-35	—	2-3/16													UC211-35
UCFL212	60	—	250	202	29	20	48	23	140	68.7	65.1	25.4	M20	—	UC212	FL212	52.70		36.00	1.53	3400	4.1
UCFL212-36	—	2-1/4	9-27/32	7-61/64	1-9/64	25/32	1-7/8	29/32	5-1/2	2.7047	2.5630	1.0000	—	3/4	UC212-36
UCFL212-38	—	2-3/8													UC212-38
UCFL212-39	—	2-7/16													UC212-39
UCFL213	65	—	258	210	30	24	50	23	155	69.7	65.1	25.4	M20	—	UC213	FL213	57.20		40.00	1.70	3000	5.1
UCFL213-40	—	2-1/2	10-5/32	8-17/64	1-3/16	15/16	1-31/32	29/32	6-3/32	2.7441	2.5630	1.0000	—	3/4	UC213-40	FL213	57.20		40.00	1.70	3000	5.1
UCFL214	70	—	265	216	31	24	54	23	160	75.4	74.6	30.2	M20	—	UC214	FL214	62.40		45.00	1.86	2800	5.9
UCFL214-44	—	2-3/4	10-7/16	8-1/2	1-7/32	15/16	2-1/8	29/32	6-5/16	2.9685	2.9370	1.1890	—	3/4	UC214-44	FL214	62.40		45.00	1.86	2800	5.9
UCFL215	75	—	275	225	35	22	57	23	165	79.5	77.8	33.3	M20	—	UC215	FL215	66.30		49.00	2.04	2600	6.4
UCFL215-48	—	3	10-13/16	8-55/64	1-3/8	55/64	2-1/4	29/32	6-1/2	3.1299	3.0630	1.3110	—	3/4	UC215-48	FL215	66.30		49.00	2.04	2600	6.4
UCFL216	80	—	290	233	35	23	59	25	180	84.3	82.6	33.3	M22	—	UC216	FL216	72.80		53.00	2.16	2400	7.9
UCFL216-50	—	3-1/8	11-13/32	9-11/64	1-3/8	29/32	2-21/64	63/64	7-3/32	3.3189	3.2520	1.3110	—	7/8	UC216-50	FL216	72.80		53.00	2.16	2400	7.9
UCFL217	85	—	305	248	36	26	63	25	190	87.6	85.7	34.1	M22	—	UC217	FL217	83.20		62.00	2.40	2200	9.6
UCFL217-52	—	3-1/4	12	9-49/64	1-27/64	1-1/32	2-15/32	63/64	7-15/32	3.4488	3.3740	1.3425	—	7/8	UC217-52	FL217	83.20		62.00	2.40	2200	9.6
UCFL218	90	—	320	265	40	26	68	25	205	96.3	96.0	39.7	M22	—	UC218	FL218	95.60		72.00	2.70	2000	12.1
UCFL218-56	—	3-1/2	12-19/32	10-7/16	1-37/64	1-1/32	2-43/64	63/64	8-1/16	3.7913	3.7795	1.5630	—	7/8	UC218-56	FL218	95.60		72.00	2.70	2000	12.1
